06MP-04FJS 90 DEG Elbow

Ask A Question

Description & Features

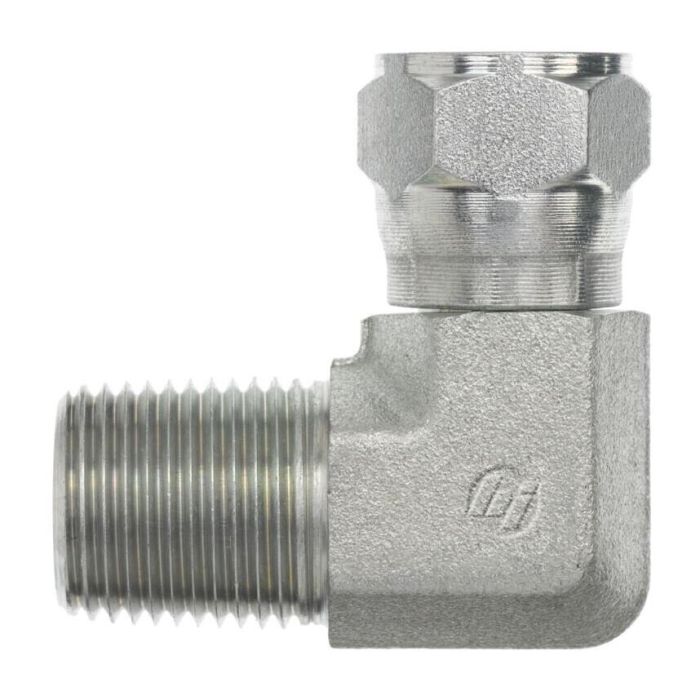

The 06MP-04FJS 90Deg Elbow Forged by Brennan Industries Inc is a robust steel forging component designed for precision and reliability in industrial applications. This elbow features a male NPTF thread type adhering to SAE J476 standards and a female JIC swivel 37-degree flare thread type compliant with SAE J514 specifications.

With a C hex size of 0.750 mm this forged elbow ensures secure connections and optimal performance. The component boasts an overall length of 1.170 mm and a centerline length of 1.220 mm providing the ideal dimensions for versatile usage in complex assemblies.

The Brennan Industries Inc 6501-06-04-FG part number guarantees the highest quality standards. This product is particularly suitable for applications requiring high resistance and strength under various conditions.

Supplier Part Number: 6501-06-04-FG

MPN: 6501-06-04-FG

Specifications

Connection Size 1
1/4 in
Connection Size 2
3/8 in
Connection Type
Female JIC Swivel, MNPT
Connection Type 1
Female SAE 37 deg JIC Flare Swivel
Connection Type 2
Male SAE 30 deg NPTF
Dimension Standards
SAE J476, SAE J514
Dimensions
1.17 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
0.56 x 0.75 in
l2 Dimensions
0.83 in
l Dimensions
1.17 in
Material
Steel
Material Construction
AISI 1045 Steel
Maximum Operating Pressure
6000 psi
Series
6501-FG Series
Thread 2 Drill Dimensions
0.172 in
Thread B1 Drill Dimensions
0.406 in
Thread B2 Drill Dimensions
0.172 in
Thread Size
7/16-20 x 3/8-18

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Shane Y on Sep 25, 2025, 5:43 PM
trying to swap out an elbow on a hose end. what threads does this one have?
Answer by: Customer Support on Sep 27, 2025, 6:03 AM
On the male side it uses NPTF threads, size 3/8-18, built to SAE J476. The other end is a female JIC swivel with a 37 degree flare, size 7/16-20, to SAE J514.
Question by: Harold F on Aug 5, 2025, 2:44 PM
Thread on the male end is NPTF, does that mean it'll seal on its own without tape or compound, or should I still use something on it?
Answer by: Customer Support on Aug 6, 2025, 5:19 PM
NPTF threads are built to create a mechanical pressure-tight seal through thread deformation alone, so in a lot of setups you can get a reliable seal without sealant. That said, many techs still apply a small amount of thread sealant or PTFE tape out of habit and there's nothing wrong with that, especially in higher-vibration environments. The male end on this fitting is 3/8-18 NPTF per SAE J476, so it follows that standard's sealing intent.
Question by: Joyce A on Jun 12, 2025, 7:09 AM
I need to replace a 90 degree elbow fitting... will this one do the trick?
Answer by: Customer Support on Jun 14, 2025, 6:31 AM
This 90-degree elbow fitting should work if you're replacing a part with these specs: a male NPTF 3/8-18 thread (SAE J476) and a female JIC swivel 7/16-20 thread (SAE J514).
