08MP-08FJS 90 DEG ELBOW FORGED

Description & Features

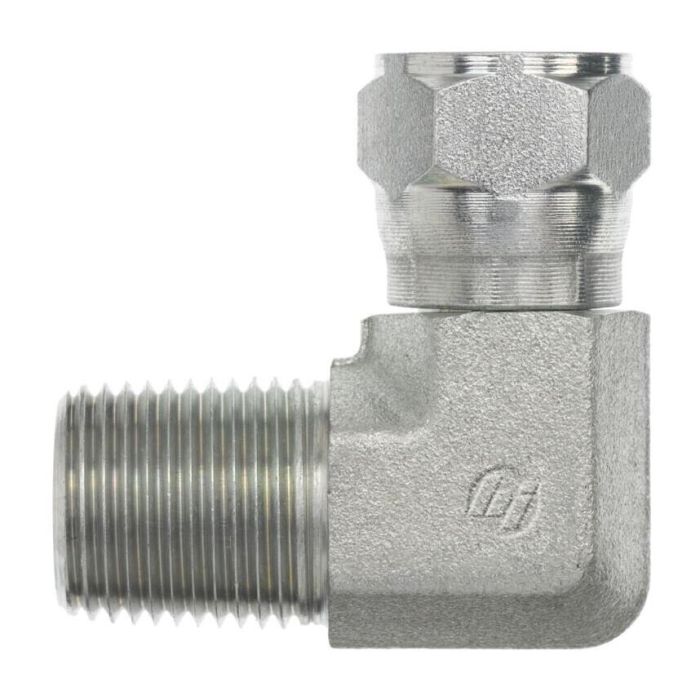

This forged steel 90-degree elbow features a male NPTF thread on one end and a female JIC swivel with a 37-degree flare on the other. The 08MP-08FJS 90 DEG ELBOW FORGED is manufactured from steel forging raw material.

The male NPTF thread (B1) measures 1/2-14 with a 0.531 drill size and conforms to SAE J476 specifications. The female JIC swivel thread (B2) measures 3/4-16 with a 0.391 drill size and conforms to SAE J514. Centerline length measures 1.470, with an overall length of 1.520.

SKU: 6501-08-08-FG

Supplier Part Number (MPN): 6501-08-08-FG

Alternate Part Numbers: 6501-08-08, A2250-8-8S

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6501-08-08-FG	Product Weight 0.30 lbs

Product Questions & Answers (1)

Question by: Harvey C on Oct 9, 2025, 12:34 PM

Is this elbow made from regular steel, or something a little tougher?

Answer by: Customer Support on Oct 11, 2025, 11:39 AM

It's manufactured from forged steel, so it's designed for robust applications.
