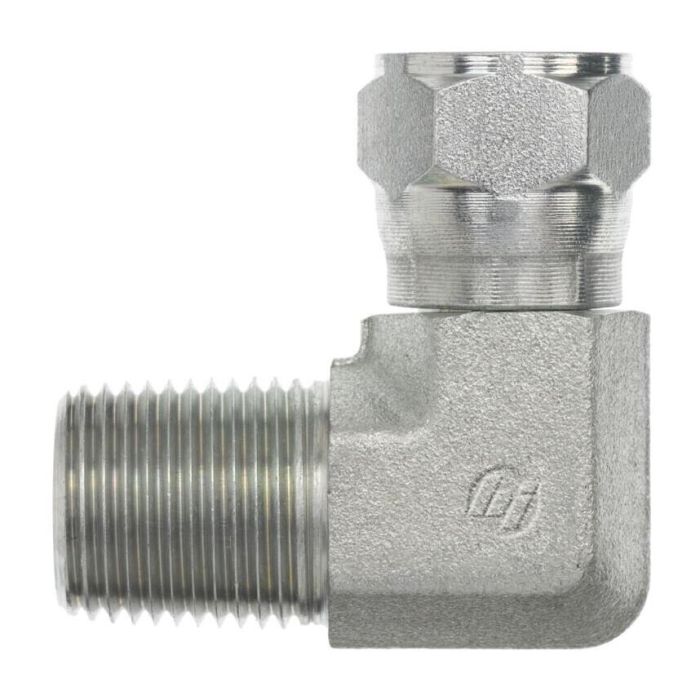

08MP-10FJS 90 DEG Elbow

Ask A Question

Description & Features

The 08MP-10FJS 90 Deg Elbow offers reliable performance with high-quality steel forging construction. Designed for industrial applications it features Male NPTF and Female JIC Swivel 37 Degree Flare thread types. Meeting SAE J476 and SAE J514 specifications this elbow ensures robust connectivity in demanding environments.

With a centerline length of 1.470 mm and overall lengths of 1.620 mm and 1.120 mm it provides precise dimensional accuracy. The thread sizes are 1/2-14 and 7/8-14 with respective drill diameters of 0.531 mm and 0.484 mm contributing to its versatile utilization.

The hex size of 0.875 mm adds to the component's ease of installation and stability during use. Please note the Prop-65 warning for California residents.

Supplier Part Number: 6501-08-10-FG

Specifications

Connection Size 1
5/8 in
Connection Size 2
1/2 in
Connection Type
Female JIC Swivel, MNPT
Connection Type 1
Female SAE 37 deg JIC Flare Swivel
Connection Type 2
Male SAE 30 deg NPTF
Dimension Standards
SAE J476, SAE J514
Dimensions
1.62 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
7/8 x 1 in
l2 Dimensions
1.12 in
l Dimensions
1.62 in
Material
Steel
Material Construction
AISI 1045 Steel
Maximum Operating Pressure
5000 psi
Series
6501-FG Series
Thread 2 Drill Dimensions
0.484 in
Thread B1 Drill Dimensions
0.531 in
Thread B2 Drill Dimensions
0.484 in
Thread Size
1/2-14 x 7/8-14

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Gene H on Oct 29, 2025, 9:52 PM
Got a 1/2 NPTF male port on a manifold block and need to swing a JIC line off it at a right angle, this the right fitting for that?
Answer by: Customer Support on Oct 31, 2025, 6:17 AM
That setup is exactly what this elbow is built for. One end threads into your 1/2-14 NPTF port on the block, and the other gives you a 7/8-14 Female JIC swivel at 90 degrees so your hose or tube line can come off clean without fighting the angle. The swivel end uses a 37 degree flare seat per SAE J514, so it'll mate up correctly with a standard JIC fitting on your line. Steel forging construction keeps it solid under the kind of load you'd expect in a working hydraulic circuit.
Question by: Brenda W on Apr 27, 2025, 11:35 AM
Does this fitting meet both SAE J476 and J514 specs?
Answer by: Customer Support on Apr 29, 2025, 6:34 AM
Yes, this elbow is manufactured to meet both SAE J476 and SAE J514 specifications, ensuring robust connectivity.
