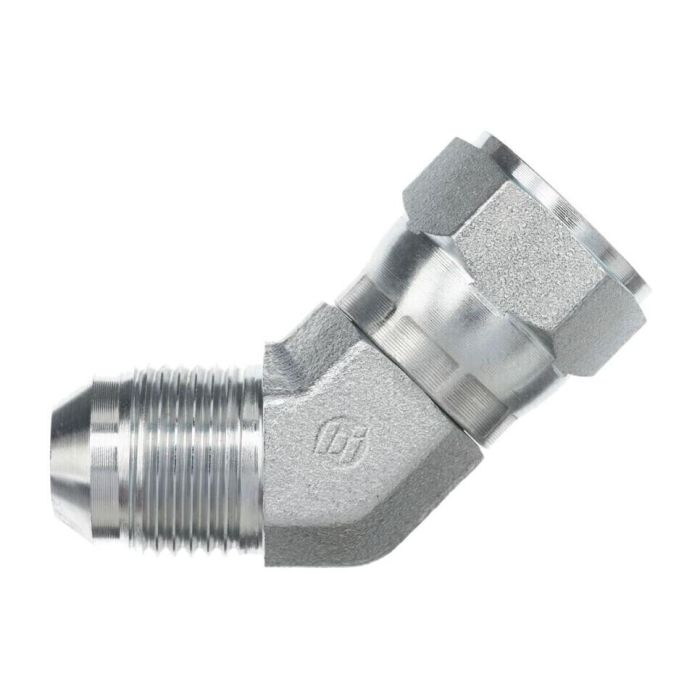

main product photo

04MJ-04FJS 45 ELB

Ask A Question

Description & Features

This high-quality product from Brennan Industries Inc. ensures robust performance and reliability in industrial settings.

Crafted from steel forging this 45-degree elbow adapter is designed to meet SAE J514 specifications providing a secure connection for demanding applications. The male JIC SAE 37-degree flare and female JIC swivel 37-degree flare threads on both ends ensure compatibility and ease of installation.

With an overall length of 0.940 mm and a centerline length of 0.720 mm it is engineered for precise fitment. The hex size measurement is 0.563 mm providing a firm grip for secure handling.

The 04MJ-04FJS 45 ELB identified by supplier part number 6502-04-04-FG is subject to PROP-65 WARNING for California residents.

Supplier Part Number: 6502-04-04-FG

Specifications

Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Female JIC Swivel, Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Female SAE 37 deg JIC Flare Swivel
Dimension Standards
MS 51522, SAE J514
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
0.563 x 0.438 in
l Dimensions
0.94 in
Material
Steel
Material Construction
AISI 1045 Steel
Series
6502-FG Series
Thread 2 Drill Dimensions
0.172 in
Thread B1 Drill Dimensions
0.172 in
Thread Size
7/16-20

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Cody J on Aug 14, 2025, 6:22 AM
both ends on this fitting are 7/16-20 JIC threads right? just want to make sure before i order a handful of em
Answer by: Customer Support on Aug 15, 2025, 10:40 AM
Correct on both counts. One end is a male JIC SAE 37-degree flare and the other is a female JIC swivel 37-degree flare, both sized at 7/16-20 and built to SAE J514 spec. The swivel on the female end is a real help during installation since it lets you rotate the fitting into position without fighting the line.
