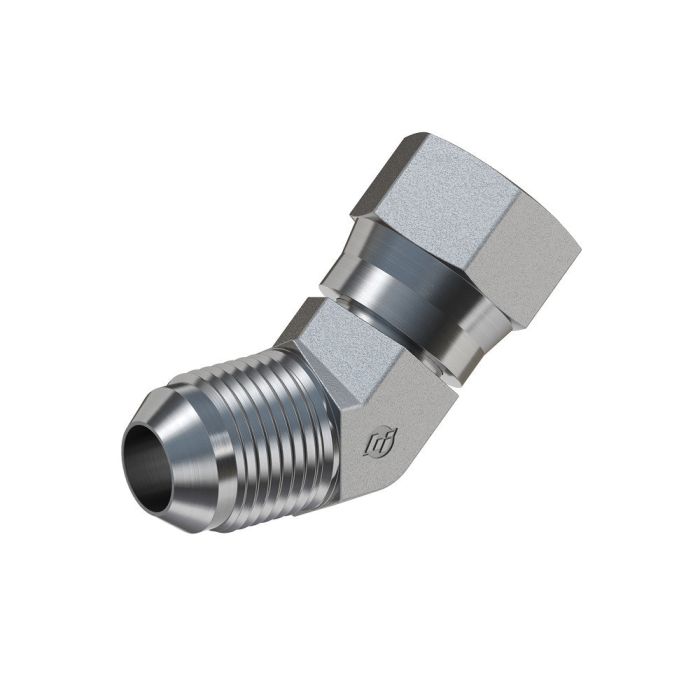

main product photo

04MJ-04FJS 45 ELB STNLS

Ask A Question

Description & Features

Constructed from stainless steel, the 04MJ-04FJS 45 ELB STNLS is a 45-degree elbow fitting designed for JIC hydraulic line connections requiring a directional change with corrosion-resistant performance. Both ports are sized at 7/16-20 and conform to SAE J514, with a Male JIC SAE 37-degree flare on one end and a Female JIC Swivel 37-degree flare on the other, a combination that allows rotational adjustment during assembly without disturbing the upstream connection.

Part of Brennan Industries' 6502-FG series, this fitting has an overall length of 0.940 inches and a centerline length of 0.720 inches, keeping the assembly compact in tight installations. The swivel female end simplifies alignment in confined hydraulic circuits where fixed fittings are difficult to torque into position.

SKU: 6502-04-04-SS

Supplier Part Number (MPN): 6502-04-04-SS

Alternate Part Numbers: AJ4SE-45

Specifications

Brand
BRENNAN
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Female JIC Swivel, Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Female SAE 37 deg JIC Flare Swivel
Dimension Standards
MS 51522, SAE J514
Dimensions
0.94 in L
Fitting Type
45 deg Elbow
Hex Size
0.563 x 0.438 in
l Dimensions
0.94 in
Material
Stainless Steel
Material Construction
316/316L Stainless Steel
Series
6502-FG Series
Thread 2 Drill Dimensions
0.172 in
Thread B1 Drill Dimensions
0.172 in
Thread B2 Drill Dimensions
0.172 in
Thread Size
7/16-20

Product Questions & Answers (1)

Question by: Ray H on Oct 29, 2025, 8:29 PM
How long is this elbow, total? Just need to make sure it'll fit in the space I've got.
Answer by: Customer Support on Oct 31, 2025, 11:55 AM
Overall length on this elbow fitting is 0.940 inches, with a centerline length of 0.720 inches, so it should be pretty compact.
