06MJ-06FJS 45 ELB

Description & Features

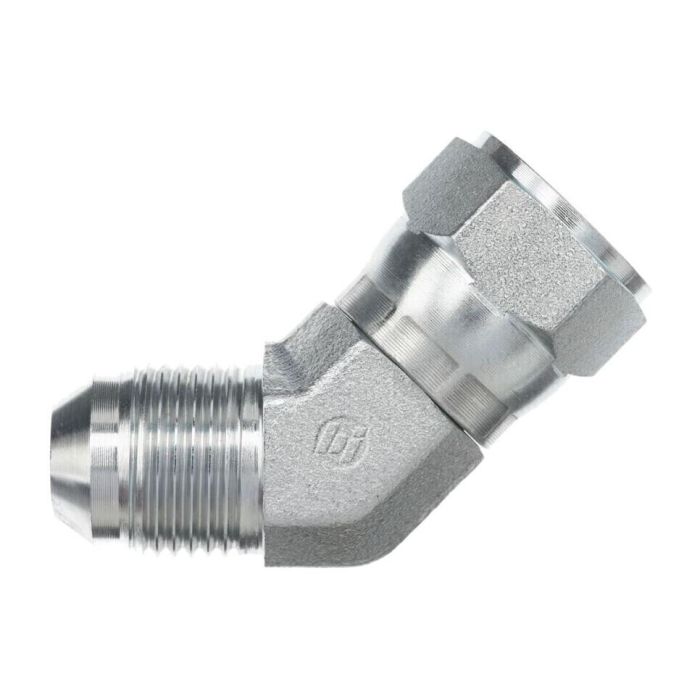

The 06MJ-06FJS 45Deg Elbow Forged brought to you by Brennan Industries Inc is expertly crafted from high-quality steel forging for robust durability and reliable performance.

It features a male JIC SAE 37-degree flare connection on one end and a female JIC swivel 37-degree flare connection on the other meeting the SAE J514 standard specifications. These precise thread types ensure a secure and efficient connection for various industrial applications.

The component dimensions include a C Hex of 0.688 mm centerline length of 0.830 mm and an overall length of 1.120 mm. Each end has thread sizes of 9/16-18 with a thread drill of 0.297 mm making it suitable for systems requiring these specific measurements.

California Residents: PROP-65 WARNING

Supplier Part Number: 6502-06-06-FG

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6502-06-06-FG	Product Weight 0.09 lbs

Product Questions & Answers (1)

Question by: Connie F on Jun 2, 2025, 4:58 PM

trying to replace an elbow on a JIC line. are both ends on this one 9/16-18 and is one side a swivel?

Answer by: Customer Support on Jun 3, 2025, 6:42 PM

On this 45 degree forged elbow, both connections are JIC SAE 37 degree flare with 9/16-18 threads, built to the SAE J514 spec. One end is a male JIC flare and the other end is a female JIC swivel flare.
