06MJ-06FJS 45 ELB STNLS

Description & Features

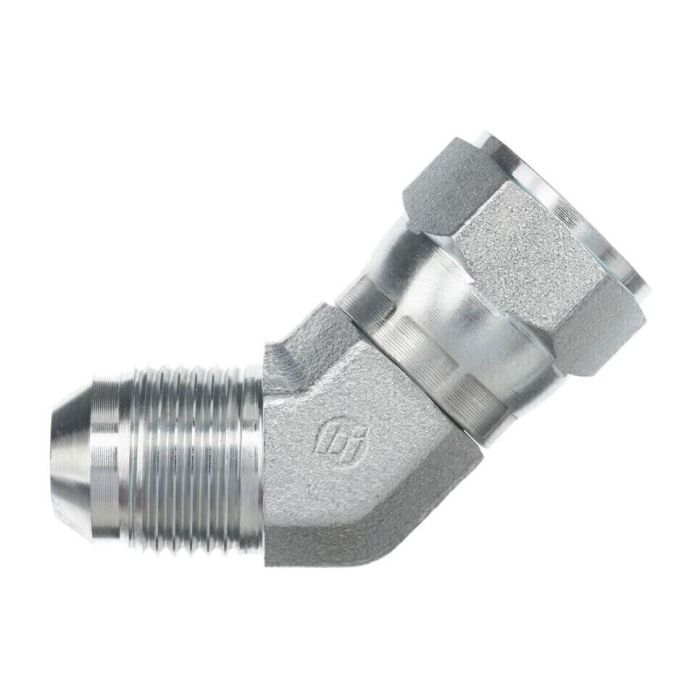

Constructed from stainless steel, the 06MJ-06FJS 45 ELB Stnls is a 45-degree elbow fitting designed for JIC hydraulic line connections. Both ends are sized at 9/16-18 and conform to SAE J514, with one end configured as a Male JIC SAE 37-degree flare and the other as a Female JIC Swivel 37-degree flare. The swivel end simplifies installation by allowing the fitting to rotate during assembly without twisting the connected line.

Part of the Brennan Industries 6502-FG series, this elbow has an overall length of 1.120 inches and a centerline length of 0.830 inches, making it well-suited for tight routing situations where a directional change is needed within a compact envelope. Stainless steel construction offers corrosion resistance appropriate for demanding hydraulic environments.

SKU: 6502-06-06-SS

Supplier Part Number (MPN): 6502-06-06-SS

Alternate Part Numbers: AJ6SE-45

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6502-06-06-SS	Product Weight 0.10 lbs

Product Questions & Answers (1)

Question by: Earl T on Mar 3, 2026, 10:11 AM

Just want to make sure this elbow will actually swivel on one end like it says? Don't want to get stuck fighting it.

Answer by: Customer Support on Mar 5, 2026, 9:00 AM

Absolutely, the female JIC end is designed to swivel freely. This allows you to tighten the connection without twisting the hose itself.
