45 DEG10 MJIC-FJIC STAINLESS STEEL

Description & Features

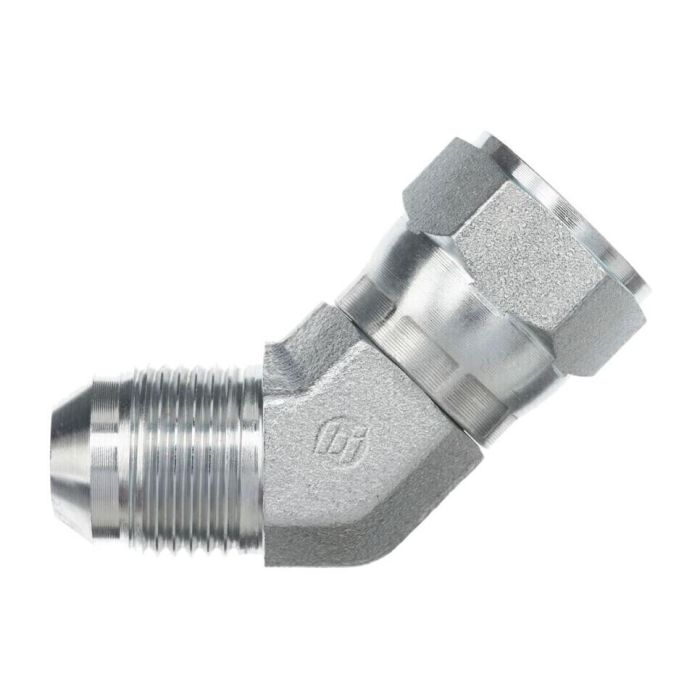

Configured as a 45-degree elbow, this stainless steel JIC fitting connects a 7/8-14 Male JIC SAE 37-degree flare on one end to a 7/8-14 Female JIC swivel 37-degree flare on the other, both conforming to SAE J514. The 45 DEG 10 MJIC-FJIC Stainless Steel fitting is manufactured from straight stainless steel, making it well suited for hydraulic lines where corrosion resistance is a priority.

The swivel female end simplifies installation by allowing the fitting to rotate during assembly without twisting the connected line. At 1.440 inches overall length with a centerline length of 1.110 inches, the compact profile suits tight routing layouts in hydraulic circuits. Both threads share a 0.484-inch drill diameter, consistent across the male and female connections.

SKU: 6502-10-10-SS

Supplier Part Number (MPN): 6502-10-10-SS

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6502-10-10-SS	Product Weight 0.29 lbs

Product Questions & Answers (1)

Question by: Lee J on Sep 1, 2025, 12:50 PM

Is this fitting made to handle some rust, or should I stick with brass for outside use?

Answer by: Customer Support on Sep 3, 2025, 8:29 AM

Because it's made from stainless steel, this JIC fitting offers good corrosion resistance for hydraulic lines, which can be really handy in outdoor setups.
