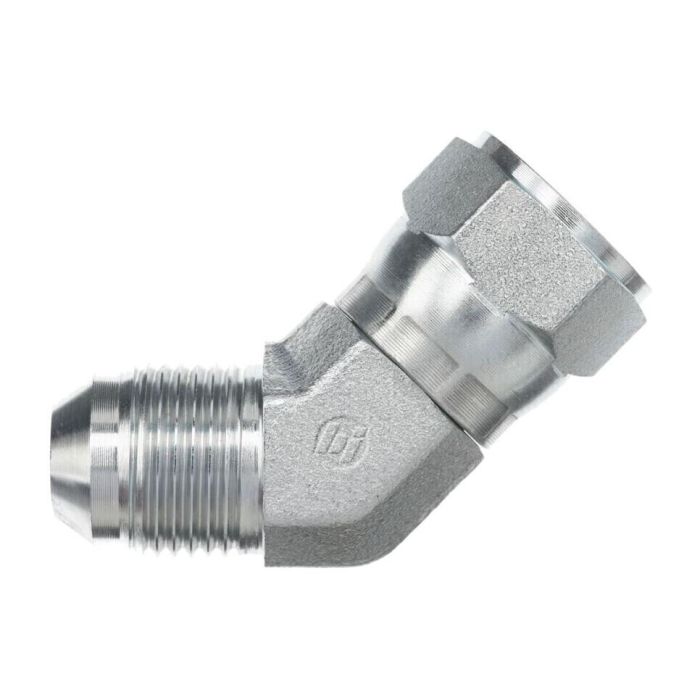

SS 45 DEGREE SWVL CONN. -12MJIC X 12FJIC

Constructed from stainless steel, the SS 45 Degree Swivel Connector -12MJIC x 12FJIC is built for hydraulic lines requiring a directional offset combined with rotational flexibility at the female end. The 45-degree angle accommodates routing constraints, while the female JIC swivel allows assembly and adjustment without twisting the hose or tube.

Both threads are sized at 1-1/16-12 and conform to SAE J514, with a 37-degree flare seating surface on each end, the male end fixed, the female end swivel. Stainless steel construction makes this fitting suitable for hydraulic systems exposed to corrosive media or environments where carbon steel is not appropriate. Manufactured by Brennan Industries as part of the 6502-FG series.

SKU: 6502-12-12-SS

Supplier Part Number (MPN): 6502-12-12-SS

Alternate Part Numbers: 6502-12-12SS, AJ12SE-45
