2070-16-16SS

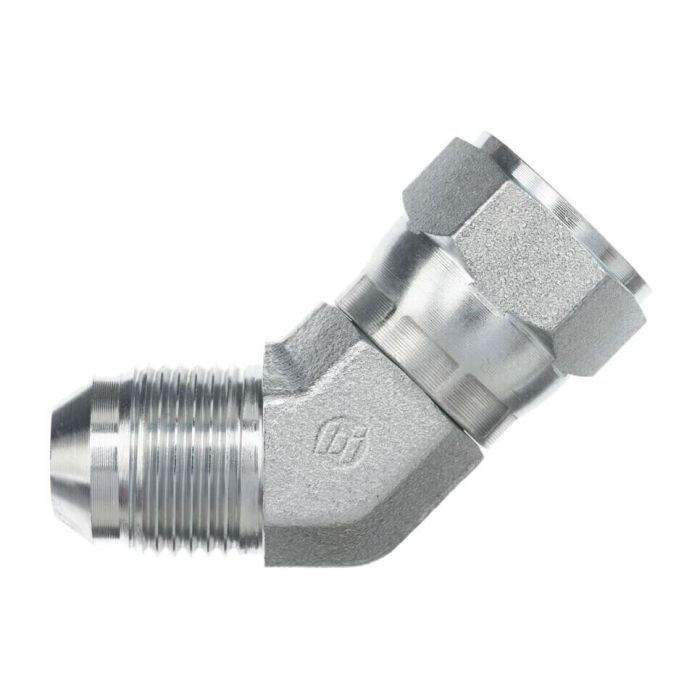

Manufactured from stainless steel, the 2070-16-16SS is a 45-degree elbow fitting designed for hydraulic lines where corrosion resistance and angular routing are required. Both ends use a 1-5/16-12 thread size conforming to SAE J514, with a Male JIC SAE 37-degree flare on one end and a Female JIC Swivel 37-degree flare on the other. The swivel end simplifies installation by allowing rotation during assembly without disturbing the mating connection.

Part of Brennan Industries' 6502-FG series, this fitting suits applications where stainless steel is specified for fluid compatibility or environmental exposure. The 45-degree elbow geometry helps manage routing in tight or angled configurations without requiring additional adapters. Overall length is 1.750 inches, with a centerline length of 1.470 inches and a hex size of 1.500 inches.

SKU: 6502-16-16-SS

Supplier Part Number (MPN): 6502-16-16-SS
