20MJ-20FJS 45 ELB

Ask A Question

Description & Features

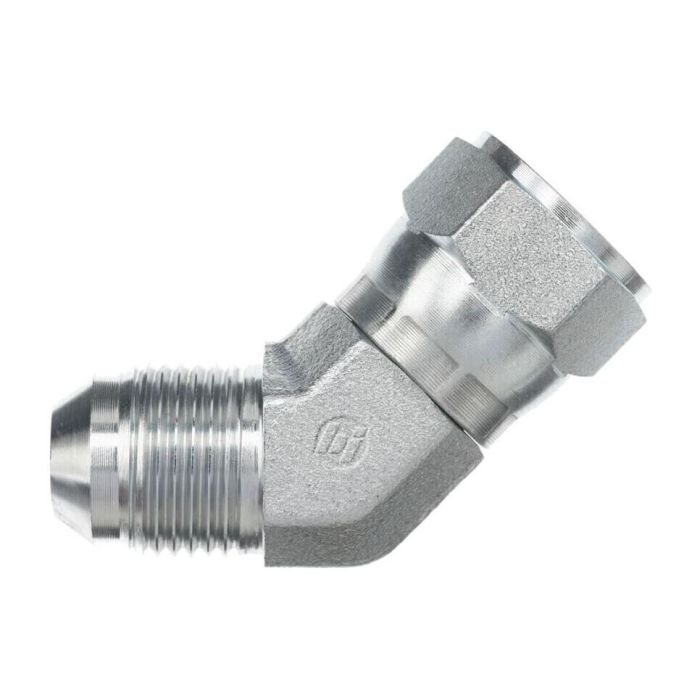

This forged steel 45-degree elbow features a male JIC SAE 37-degree flare on one end and a female JIC swivel 37-degree flare on the other. The 20MJ-20FJS 45 ELB is part of the 6502-FG series.

Thread B1 and Thread B2 both measure 1-5/8-12 to the SAE J514 specification. Centerline length is 1.590 mm, and overall length is 2.030 mm.

SKU: 6502-20-20-FG

Supplier Part Number (MPN): 6502-20-20-FG

Alternate Part Numbers: 6502-20-20, A2070-20-20S

Specifications

Connection Size 1
1-1/4 in
Connection Size 2
1-1/4 in
Connection Type
Female JIC Swivel, Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Female SAE 37 deg JIC Flare Swivel
Dimension Standards
MS 51522, SAE J514
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
l Dimensions
2.03 in
Material
Steel
Material Construction
AISI 1045 Steel
Maximum Operating Pressure
4000 psi
Series
6502-FG Series
Thread 2 Drill Dimensions
1.078 in
Thread B1 Drill Dimensions
1.078 in
Thread Size
1-5/8-12
