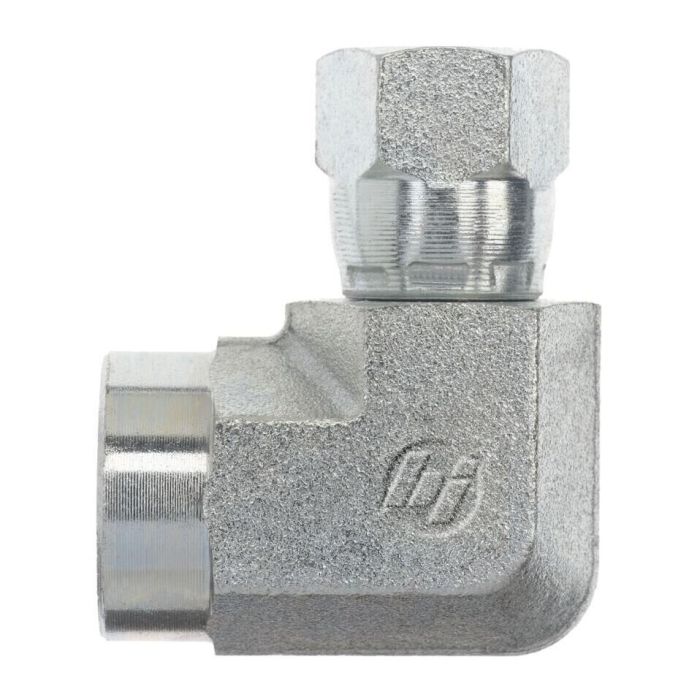

04FP-04FJS 90 DEG ELBOW

Forged from steel, the 04FP-04FJS 90 Deg Elbow is a 90-degree hydraulic elbow fitting designed to redirect flow in tight-angle installations where straight connections are not practical. The forged steel construction provides solid structural integrity suited to hydraulic line service.

One end features a 1/4-18 Female Nptf thread conforming to SAE J476, while the opposing end uses a 7/16-20 Female JIC Swivel with a 37-degree flare, conforming to SAE J514. This dual-standard configuration makes the fitting well suited for connecting Nptf-ported equipment to JIC hydraulic hose or tubing assemblies. The swivel end allows for rotational alignment during installation, reducing stress on connected lines. Part of Brennan's 6503-Fg series, this fitting is manufactured to consistent dimensional tolerances across the product line.

SKU: 6503-04-04-FG

Supplier Part Number (MPN): 6503-04-04-FG

Alternate Part Numbers: 6503-04-04, 6503-0404, A2244-4-4S
