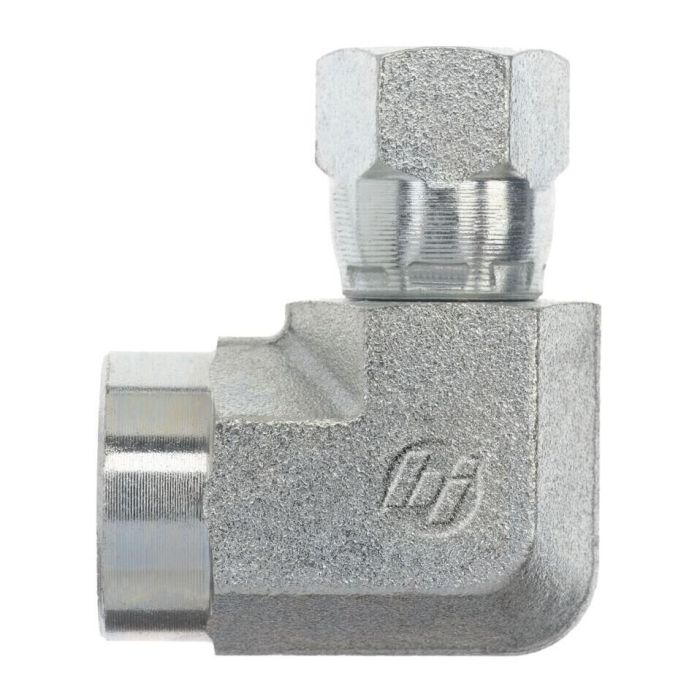

main product photo

08FP-08FJS 90 DEG Elbow

Ask A Question

Description & Features

The 08FP-08FJS 90 DEG Elbow from Brennan Industries Inc is designed for industrial applications featuring a robust steel forging construction.

With an overall length of 1.550 mm and a centerline length of 1.230 mm this elbow ensures durability and reliability in demanding environments.

It incorporates a female NPTF thread type as per SAE J476 on B1 and a female JIC swivel 37 flare thread type as per SAE J514 on B2 ensuring a secure and compatible fit.

The component's C hex measures 0.875 mm providing added strength and stability.

California Residents: PROP-65 WARNING

Supplier Part Number: 6503-08-08-FG

Specifications

Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Female JIC Swivel, FNPT
Connection Type 1
Female SAE 37 deg JIC Flare Swivel
Connection Type 2
Female SAE NPTF
Dimension Standards
SAE J476, SAE J514
Dimensions
1.55 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
7/8 in
l2 Dimensions
1.12 in
l Dimensions
1.55 in
Material
Steel
Material Construction
AISI 1045 Steel
Maximum Operating Pressure
3000 psi
Series
6503-FG Series
Thread 2 Drill Dimensions
0.391 in
Thread B1 Drill Dimensions
0.531 in
Thread B2 Drill Dimensions
0.391 in
Thread Size
3/4-16 x 1/2-14

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Dwayne G on Mar 9, 2026, 10:17 AM
need a 90 to go from 1/2 nptf female over to a jic line. is that what this one is?
Answer by: Customer Support on Mar 11, 2026, 6:37 AM
For a 90 degree turn, it mates a 1/2-14 female NPTF port on one end (B1, SAE J476) to a 3/4-16 female JIC swivel 37 degree flare on the other end (B2, SAE J514).
