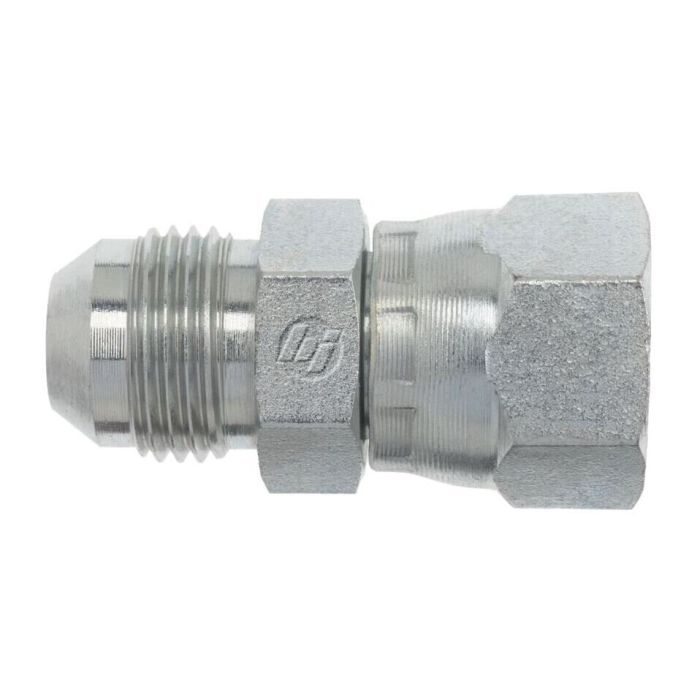

04MJ-04FJS STRAIGHT

Ask A Question

Description & Features

The 04MJ-04FJS Straight fitting from Brennan Industries Inc. is a high-quality adapter crafted from durable straight steel. It features a thread configuration compliant with SAE J514 specifications, utilizing a male JIC SAE 37-degree flare on one end and a female JIC swivel 37-degree flare on the other. This precision-engineered component measures 0.562 mm at C Hex 1, with an overall length of 1.511 mm for optimal fitting performance in various industrial settings.

Designed for applications requiring reliable, leak-proof connections, this adapter incorporates a 7/16-20 thread size for both B1 and B2 ends, ensuring compatibility and ease of installation. The 04MJ-04FJS fitting maintains an overall length of 1.160 mm at L2, making it suitable for systems demanding precise measurements and robust performance. Built to meet industry standards, it ensures dependable service in demanding environments.

Supplier Part Number: 6504-04-04

Specifications

Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Female JIC Swivel, Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Female SAE 37 deg JIC Flare Swivel
Dimension Standards
SAE J514
Dimensions
1.51 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1/2 x 9/16 in
l2 Dimensions
1.16 in
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Series
6504 Series
Thread 2 Drill Dimensions
0.172 in
Thread B1 Drill Dimensions
0.172 in
Thread Size
7/16-20

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Ricky M on Oct 30, 2025, 6:22 AM
trying to hook a male jic line into a female jic port, is this the right kind of adapter?
Answer by: Customer Support on Oct 31, 2025, 9:53 AM
For joining JIC 37 degree flare connections, this adapter gives you a male JIC SAE 37 degree flare on one end and a female JIC swivel 37 degree flare on the other, both built to SAE J514. It is meant for the common flare style connection where you want a swivel on the female side.
