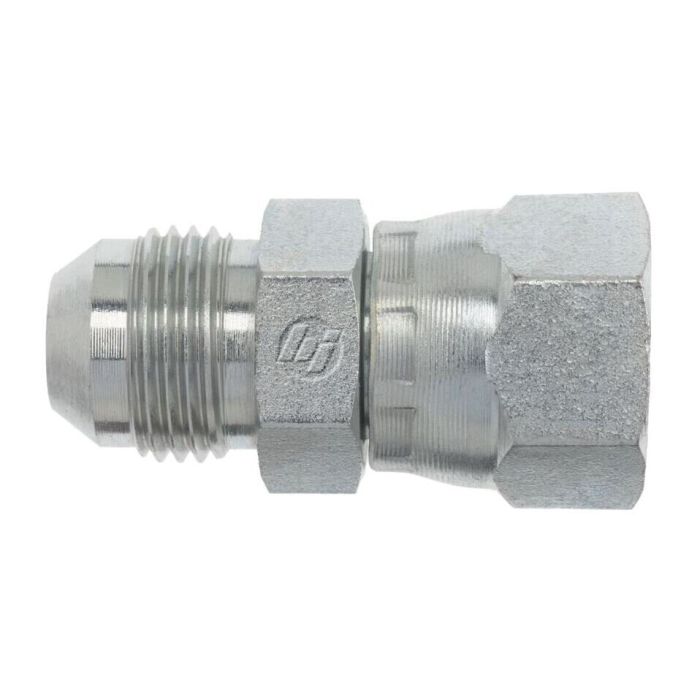

06MJ-04FJS STRAIGHT

Description & Features

Designed for precision and durability, the 06MJ-04FJS STRAIGHT fitting is an essential component for hydraulic systems requiring a secure connection. Crafted from high-quality straight steel, this fitting ensures robust performance in demanding industrial environments. The Male JIC SAE 37-degree flare and Female JIC swivel 37-degree flare threads are compliant with SAE J514 standards, providing reliable and leak-resistant connections.

With an overall length of 1.504 mm, the fitting features a Brennan C Hex of 0.563 mm, ensuring compatibility and ease of use in various setups. The specific thread sizes, 9/16-18 for B1 and 7/16-20 for B2, highlight its versatility in connecting different hydraulic components seamlessly. This fitting is a dependable choice for professionals seeking efficient and standardized solutions in hydraulic applications.

SKU: 6504-06-04

Supplier Part Number (MPN): 6504-06-04

Specifications

Connection Size 1 3/8 in	Connection Size 2 1/4 in	Connection Type Female JIC Swivel, Male JIC	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Female SAE 37 deg JIC Flare Swivel	Dimension Standards SAE J514	Dimensions 1-1/2 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 9/16 x 5/8 in	l2 Dimensions 1.16 in	Material Steel	Material Construction AISI 12L14/1045 Steel	Maximum Operating Pressure 6000 psi	Series 6504 Series	Thread 2 Drill Dimensions 0.172 in	Thread B1 Drill Dimensions 0.297 in	Thread Size 9/16-18, 7/16-20

Product Questions & Answers (1)

Question by: Steve H on Jan 13, 2026, 10:26 AM

Reckon this fitting'll hold up okay in a hydraulic setup that sees pretty consistent use?

Answer by: Customer Support on Jan 15, 2026, 6:51 AM

For demanding industrial environments, this fitting is crafted from straight steel, ensuring robust performance.
