MJ-FJS STRAIGHT 08X08

Description & Features

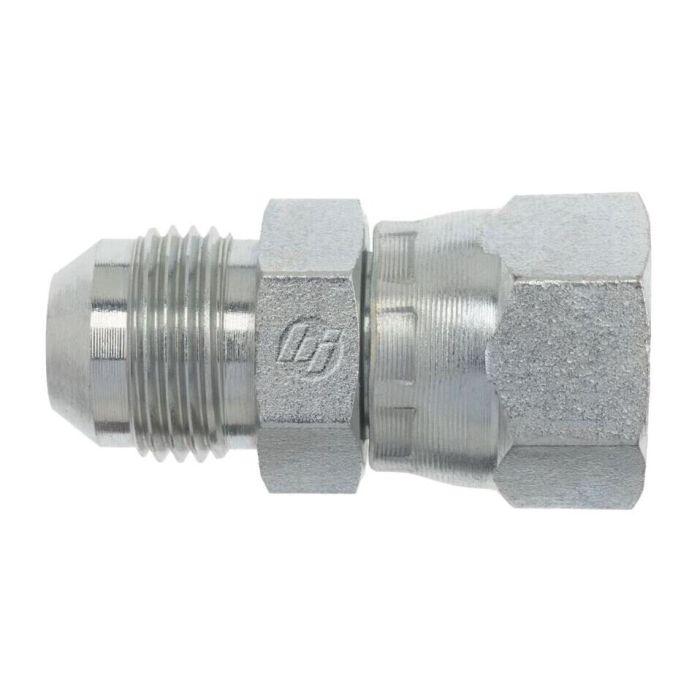

This straight MJ-FJS fitting features a male JIC SAE 37-degree flare on one end and a female JIC swivel 37-degree flare on the other. Both ends feature 3/4-16 threads manufactured to SAE J514 specifications. It is constructed from stainless steel for durability and corrosion resistance, making it suitable for demanding hydraulic applications.

The MJ-FJS STRAIGHT 08X08 has an overall length of 1.830 inches.

SKU: 6504-08-08-SS

Supplier Part Number (MPN): 6504-08-08-SS

Specifications

Brand BRENNAN	Connection Size 1 1/2 in	Connection Size 2 1/2 in	Connection Type Female JIC Swivel, Male JIC	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Female SAE 37 deg JIC Flare Swivel	Dimension Standards SAE J514	Dimensions 1.83 in L	Fitting Type Adapter	Hex Size 0.813 x 0.875 in	l2 Dimensions 1.42 in	Material Stainless Steel	Material Construction 316/316L Stainless Steel	Maximum Operating Pressure 6000 psi	Series 6504 Series	Thread 2 Drill Dimensions 0.391 in	Thread B1 Drill Dimensions 0.391 in	Thread B2 Drill Dimensions 0.391 in	Thread Size 3/4-16

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size	Hex Size
6504-04-04-SS	1/4 in	1/4 in	7/16-20	1/2 x 9/16 in
6504-05-04-SS	5/16 in	1/4 in	7/16-20	0.563 in
6504-06-04-SS	3/8 in	1/4 in	7/16-20	9/16 x 5/8 in
6504-06-06-SS	3/8 in	3/8 in	9/16-18	0.62 x 0.69 in

Product Questions & Answers (1)

Question by: Floyd F on Aug 22, 2025, 6:04 PM

What's the overall length of this fittin? Just need to make sure it'll fit in the space I got.

Answer by: Customer Support on Aug 24, 2025, 8:14 AM

The overall length of this MJ-FJS straight fitting is 1.830 inches.
