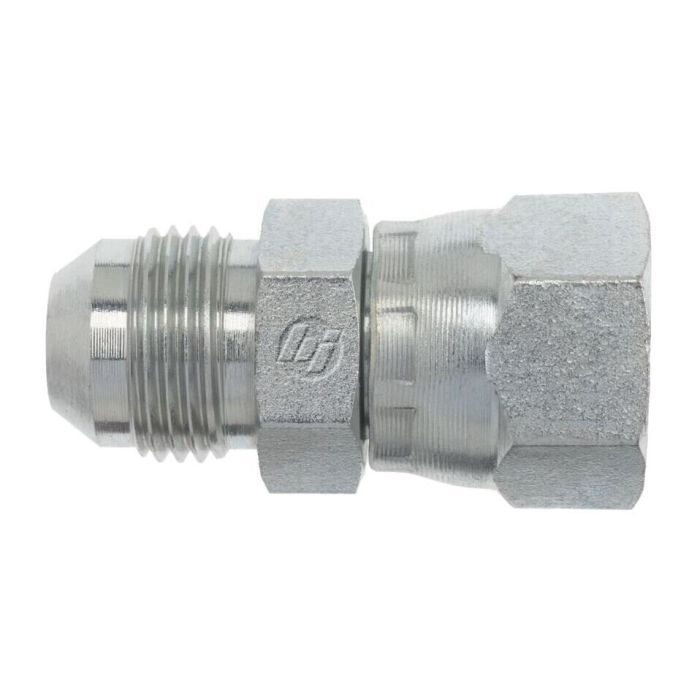

main product photo

08MJ-10FJS STRAIGHT

Ask A Question

Description & Features

The 08MJ-10FJS Straight fitting from Brennan Industries is an essential component for hydraulic applications, ensuring reliable connections between compatible parts. Crafted from high-quality straight steel, this durable fitting is designed to handle demanding industrial environments. The fitting features a Male JIC SAE 37-degree flare on one end, with dimensions of 3/4-16 as per SAE J514 standards, providing a secure and leak-free connection.

On the opposite end, the fitting includes a Female JIC Swivel 37-degree flare, sized at 7/8-14, also conforming to SAE J514 specifications. With an overall length of 2.070 mm and a hex size of 1.000 mm, this fitting offers precise fitment and easy installation. Please note the PROP-65 warning for California residents regarding this product. Ideal for high-pressure applications, it’s a versatile choice for those seeking dependable performance in industrial settings.

SKU: 6504-08-10

Supplier Part Number (MPN): 6504-08-10

Specifications

Connection Size 1
1/2 in
Connection Size 2
5/8 in
Connection Type
Female JIC Swivel, Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Female SAE 37 deg JIC Flare Swivel
Dimension Standards
SAE J514
Dimensions
2.07 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1 x 15/16 in
l2 Dimensions
1.57 in
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
5000 psi
Series
6504 Series
Thread 2 Drill Dimensions
0.484 in
Thread B1 Drill Dimensions
0.391 in
Thread Size
7/8-14 x 3/4-16

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Tammy A on Feb 27, 2026, 8:51 PM
Will this fitting hold up in a hydraulic system that sees pretty high pressure, say around 3000 psi?
Answer by: Customer Support on Mar 1, 2026, 6:31 AM
Crafted from high-quality straight steel, this fitting is well-suited for demanding industrial environments and high-pressure applications.
