08MJ-12FJS STRAIGHT

Ask A Question

Description & Features

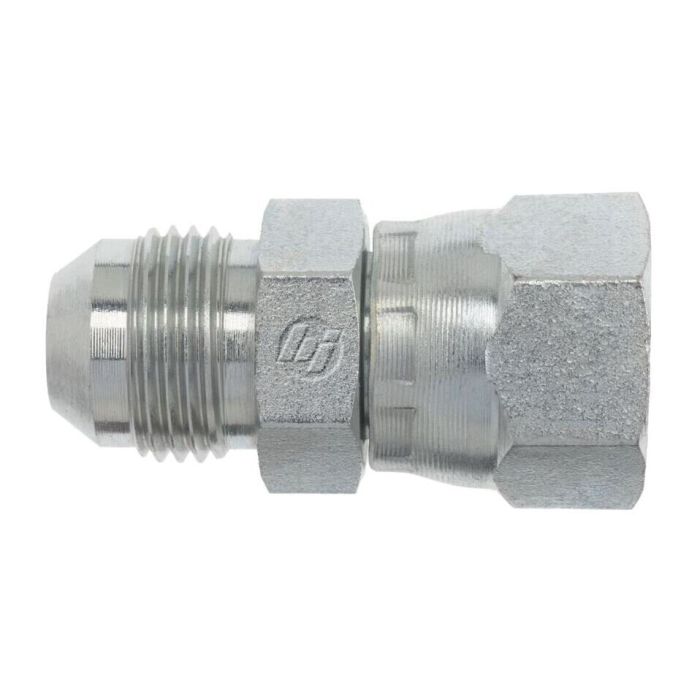

This straight steel fitting, part number 08MJ-12FJS STRAIGHT, is part of the 6504 series from Brennan Industries. It features a male JIC SAE 37-degree flare connection on one end, sized at 3/4-16 with a 0.391 mm thread drill.

The opposite end features a female JIC swivel 37-degree flare connection, sized at 1-1/16-12 with a 0.609 mm thread drill. The overall length is 2.100 mm.

SKU: 6504-08-12

Supplier Part Number (MPN): 6504-08-12

Specifications

Connection Size 1
1/2 in
Connection Size 2
3/4 in
Connection Type
Female JIC Swivel, Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Female SAE 37 deg JIC Flare Swivel
Dimension Standards
SAE J514
Dimensions
2.1 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1.06 in, 1.25 in
l2 Dimensions
1.54 in
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
5000 psi
Series
6504 Series
Thread 2 Drill Dimensions
0.609 in
Thread B1 Drill Dimensions
0.391 in
Thread Size
3/4-16 x 1-1/16-12

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Melvin R on Aug 1, 2025, 9:30 AM
Hey, just want to make sure this'll fit right... one end's gotta be male JIC SAE 37-degree flare, and the other a female JIC swivel, both 37-degree flare. Is that how this one's built?
Answer by: Customer Support on Aug 2, 2025, 6:32 PM
That's right. This fitting has a male JIC SAE 37-degree flare on one end and a female JIC swivel 37-degree flare on the other, so it sounds like it'll do what you need.
