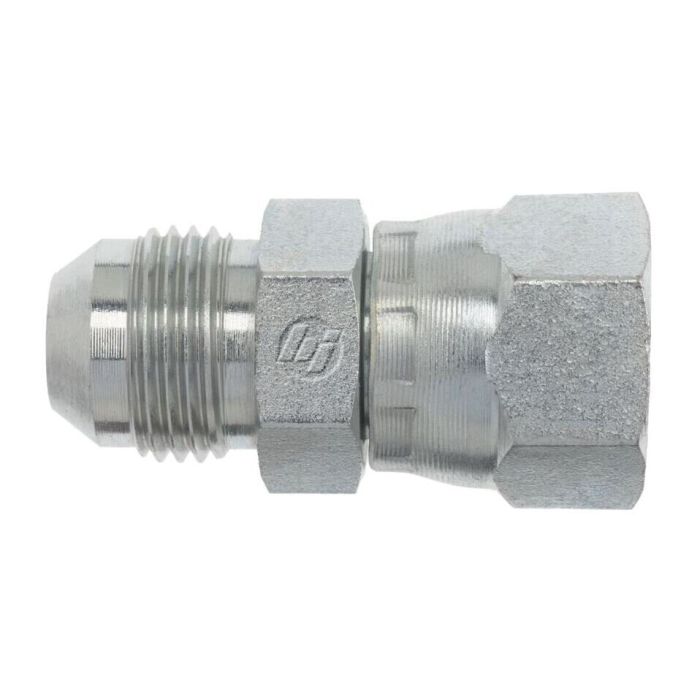

#10 MJ X #10 FJ (SWIVEL)

Description & Features

The #10 MJ X #10 FJ (SWIVEL) by Brennan Industries Inc offers reliable connection solutions with its precise engineering and robust material composition.

Constructed from straight steel, the fitting features a male JIC SAE 37-degree flare on one end and a female JIC swivel 37-degree flare on the other, adhering to SAE J514 specifications. Its dimensions include an overall length of 2.070 mm and a secondary length of 1.610 mm, along with a 1.000 mm hex size.

This sturdy connector supports efficient fluid transmission for industrial applications, ensuring secure and leak-free performance. The threads, both sized at 7/8-14 mm, offer compatibility with various systems.

The fittingrsquo;s precision and adherence to stringent standards make it a dependable choice for high-performance environments.

Supplier Part Number: 6504-10-10

Specifications

Brand BRENNAN	a Dimensions 2.17 in	Connection Size 1 5/8 in	Connection Size 2 5/8 in	Connection Type Female JIC Swivel, Male JIC	Connection Type 1 Female SAE 37 deg JIC Flare Swivel	Connection Type 2 Male SAE 37 deg JIC Flare	Dimension Standards SAE J514	Dimensions 2.17 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 1 x 15/16 in	l2 Dimensions 1.61 in	Material Steel	Material Construction AISI 12L14/C1045 Steel	Maximum Operating Pressure 5000 psi	Series 6504 Series	Thread 2 Drill Dimensions 0.484 in	Thread B1 Drill Dimensions 0.484 in	Thread Size 7/8-14	Tube Outside Diameter 0.63 in

Similar Products

Model Number	Connection Size 1	Connection Type 1	Connection Size 2	Material Construction	Thread Size	Hex Size
6504-04-04	1/4 in	Male SAE 37 deg JIC Flare	1/4 in	AISI 12L14/1045 Steel	7/16-20	1/2 x 9/16 in
6504-06-04	3/8 in	Male SAE 37 deg JIC Flare	1/4 in	AISI 12L14/1045 Steel	9/16-18, 7/16-20	9/16 x 5/8 in
6504-06-06	3/8 in	Female SAE 37 deg JIC Flare Swivel	3/8 in	AISI 12L14/C1045 Steel	9/16-18	0.62 x 0.69 in
6504-06-08	3/8 in	Male SAE 37 deg JIC Flare	1/2 in	AISI 12L14/1045 Steel	3/4-16, 9/16-18	0.813 x 0.875 in
6504-08-06	1/2 in	Male SAE 37 deg JIC Flare	3/8 in	AISI 12L14/1045 Steel	9/16-18	0.812 x 0.688 in
6504-08-10	1/2 in	Male SAE 37 deg JIC Flare	5/8 in	AISI 12L14/1045 Steel	7/8-14 x 3/4-16	1 x 15/16 in
6504-08-12	1/2 in	Male SAE 37 deg JIC Flare	3/4 in	AISI 12L14/1045 Steel	3/4-16 x 1-1/16-12	1.06 in, 1.25 in
6504-10-08	5/8 in	Male SAE 37 deg JIC Flare	1/2 in	AISI 12L14/1045 Steel	3/4-16	0.938 x 0.88 in
6504-12-12	3/4 in	Male SAE 37 deg JIC Flare	3/4 in	AISI 12L14/1045 Steel	1-1/16-12	1-1/4 x 1-1/8 in
6504-16-12	1 in	Male SAE 37 deg JIC Flare	3/4 in	AISI 12L14/1045 Steel	1-5/16-12 x 1-1/16-12	1-3/8 x 1-1/4 in
6504-16-16	1 in	Male SAE 37 deg JIC Flare	1 in	AISI 12L14/1045 Steel	1-5/16-12	1-3/8 x 1-1/2 in
6504-20-20	1-1/4 in	Male SAE 37 deg JIC Flare	1-1/4 in	AISI 12L14/1045 Steel	1-5/8-12	2 x 1.688 in
6504-24-24	1-1/2 in	Male SAE 37 deg JIC Flare	1-1/2 in	AISI 12L14/1045 Steel	1-7/8-12	2 in, 2-1/4 in
6504-32-32	2 in	Male SAE 37 deg JIC Flare	2 in	AISI 12L14/1045 Steel	2-1/2-12

Product Questions & Answers (1)

Question by: Duane P on Mar 29, 2025, 7:58 PM

both ends on this thing are 7/8-14 thread, so does that mean it'll mate up with standard JIC fittings on either side?

Answer by: Customer Support on Mar 31, 2025, 6:39 AM

Correct on both counts. The male end is a JIC SAE 37-degree flare and the female end is a JIC swivel 37-degree flare, both at 7/8-14 thread size and built to SAE J514. So yes, either side will connect to standard JIC 37-degree flare fittings at that thread size without any adapter in between.
