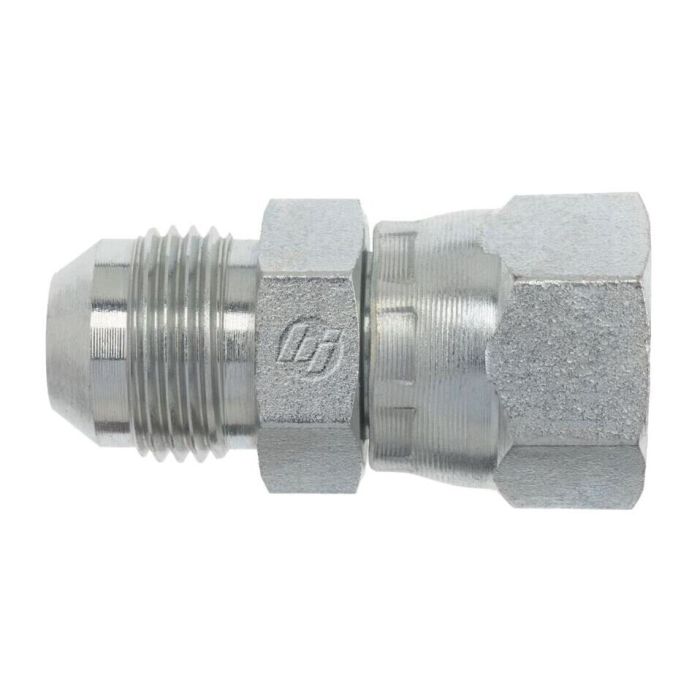

main product photo

16MJ-12FJS

Ask A Question

Description & Features

A straight steel hydraulic adapter connecting a 1-5/16-12 Male JIC SAE 37-degree flare on one end to a 1-1/16-12 Female JIC swivel 37-degree flare on the other, the 16MJ-12FJS is manufactured by Brennan Industries to SAE J514 standards on both threads. The swivel end allows for rotational adjustment during installation, reducing stress on connected lines and simplifying alignment in tight or fixed-position assemblies.

Built from straight steel, this Series 6504 adapter is suited for hydraulic line connections where a reliable JIC-to-JIC size transition is required. The overall length measures 2.450 inches, with a hex size of 1.500 inches for wrench engagement. Both thread ends conform to SAE J514, making this fitting compatible with standard JIC hydraulic systems across a range of industrial equipment and machinery.

SKU: 6504-16-12

Supplier Part Number (MPN): 6504-16-12

Specifications

Connection Size 1
1 in
Connection Size 2
3/4 in
Connection Type
Female JIC Swivel, Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Female SAE 37 deg JIC Flare Swivel
Dimension Standards
SAE J514
Dimensions
2.43 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1-3/8 x 1-1/4 in
l2 Dimensions
1.87 in
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
4000 psi
Series
6504 Series
Thread 2 Drill Dimensions
0.609 in
Thread B1 Drill Dimensions
0.844 in
Thread Size
1-5/16-12 x 1-1/16-12

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Janice W on May 5, 2025, 8:48 PM
Just want to make sure this will fit my setup. I've got a 1-5/16-12 male end and need to connect it to a 1-1/16-12 female swivel. This adapter should do the trick, right?
Answer by: Customer Support on May 6, 2025, 9:15 PM
This straight steel adapter is designed to connect exactly those sizes – a 1-5/16-12 male JIC to a 1-1/16-12 female JIC swivel. It's built to SAE J514 standards, so it should fit right into your existing JIC hydraulic system.
