16MJ-16FJS STRAIGHT

Ask A Question

Description & Features

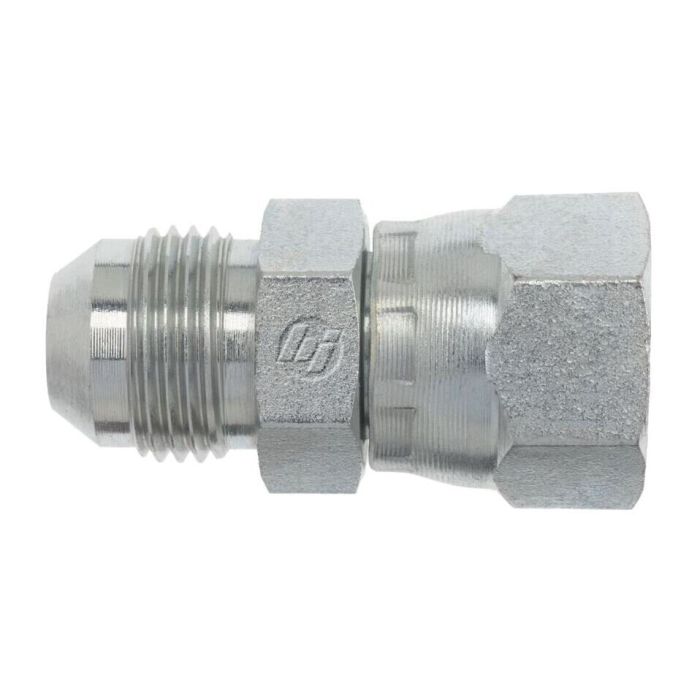

The 16MJ-16FJS STRAIGHT by Brennan Industries Inc. is engineered for robust industrial applications requiring precise fluid transfer. Constructed from durable straight steel it ensures high performance and long-lasting reliability.

Featuring an overall length of 2.500 mm and L2 length of 1.910 mm it is suitable for various configurations. Compliant with SAE J514 specifications the adapter includes a Male JIC SAE 37 Degree Flare on one end and a Female JIC Swivel 37 Degree Flare on the other end both with a thread size of 1-5/16-12.

The C Hex measures 1.500 mm facilitating easy installation and removal. With a thread drill of 0.844 mm it fits seamlessly into compatible systems maintaining secure connections under demanding conditions.

Supplier Part Number: 6504-16-16

California Residents: PROP-65 WARNING

Specifications

Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Female JIC Swivel, Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Female SAE 37 deg JIC Flare Swivel
Dimension Standards
SAE J514
Dimensions
2-1/2 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1-3/8 x 1-1/2 in
l2 Dimensions
1.91 in
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
4000 psi
Series
6504 Series
Thread 2 Drill Dimensions
0.844 in
Thread B1 Drill Dimensions
0.844 in
Thread Size
1-5/16-12

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Kirk M on Jul 20, 2025, 1:22 PM
Is that overall length measurement the total length including the threads?
Answer by: Customer Support on Jul 22, 2025, 6:42 AM
That 2.500 mm overall length does indeed account for the full length, end to end.
Question by: Ronnie B on Jul 18, 2025, 12:57 PM
got a hose end that’s 1-5/16-12 JIC male, will this adapter mate up to it without any goofy extra pieces?
Answer by: Customer Support on Jul 20, 2025, 6:10 AM
With a male JIC SAE 37 degree flare on one side and a female JIC swivel 37 degree flare on the other, both in 1-5/16-12 threads, it is meant to connect those two JIC 37 flare styles directly under SAE J514.
Question by: Jean W on Mar 26, 2026, 4:44 PM
thread size on both ends is 1-5/16-12, that right? just want to confirm before I order a handful of these
Answer by: Customer Support on Mar 28, 2026, 3:32 PM
Both ends are 1-5/16-12, yes. One end is a Male JIC SAE 37 Degree Flare and the other is a Female JIC Swivel 37 Degree Flare, both at that same thread size. The swivel end gives you a little rotational flexibility during assembly, which helps a lot when you're working in tighter spots and can't spin the whole line.
