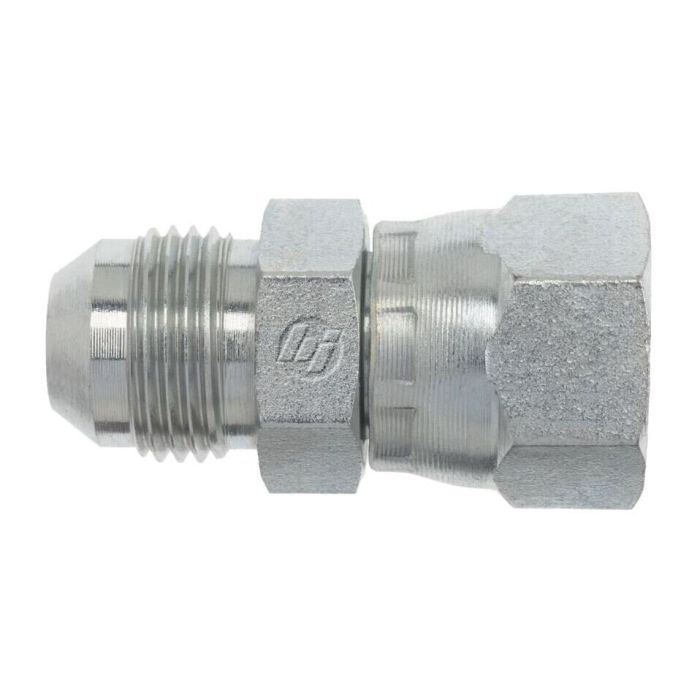

20MJ-20FJS STRAIGHT

Manufactured from straight steel, the 20MJ-20FJS Straight is a union-style hydraulic fitting designed to connect two JIC fluid lines in a straight-through configuration. Both ends carry a 1-5/8-12 thread and conform to SAE J514, with one end terminating as a Male JIC SAE 37-degree flare and the other as a Female JIC Swivel 37-degree flare. The swivel end allows for rotational adjustment during assembly, reducing the need to torque the connected line.

With an overall length of 2.700 inches and a hex size of 2.000 inches, this fitting is suited for high-pressure hydraulic circuits where a reliable JIC-to-JIC union connection is required. The straight steel construction provides the structural integrity expected in demanding industrial environments. This fitting is a Brennan Industries product, Series 6504. California residents should note that this product carries a Proposition 65 warning.

SKU: 6504-20-20

Supplier Part Number (MPN): 6504-20-20
