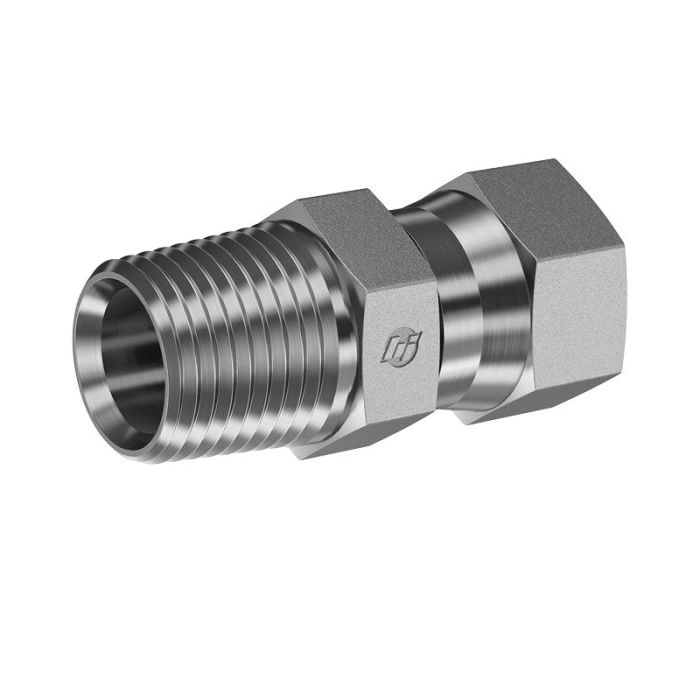

main product photo

04MP-04FJS SS STRAIGHT

Ask A Question

Description & Features

Constructed from stainless steel, the 04MP-04FJS SS Straight is a straight hydraulic adapter designed for applications where corrosion resistance and connection reliability are essential. One end features a 1/4-18 Male Nptf thread conforming to SAE J476, while the other provides a 7/16-20 Female JIC Swivel with a 37-degree flare seat per SAE J514, making it well suited for transitioning between Nptf pipe and JIC hydraulic line connections.

The swivel design on the JIC end allows for easier installation and alignment without rotating the mating hose or tube assembly. At an overall length of 1.540 inches, this compact fitting is part of Brennan Industries' 6505 series of stainless steel straight adapters, intended for use in hydraulic circuits where standard carbon steel fittings are not appropriate due to environmental or fluid compatibility requirements.

SKU: 6505-04-04-SS

Supplier Part Number (MPN): 6505-04-04-SS

Alternate Part Numbers: SS-6505-04-04

Specifications

Brand
BRENNAN
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Female JIC Swivel, MNPT
Connection Type 1
Female SAE 37 deg JIC Flare Swivel
Connection Type 2
Male SAE 30 deg NPTF
Dimension Standards
SAE J476, SAE J514
Dimensions
1.56 in L
Fitting Type
Adapter
Hex Size
0.563 in
l2 Dimensions
1.2 in
Material
Stainless Steel
Material Construction
316/316L Stainless Steel
Maximum Operating Pressure
6000 psi
Series
6505 Series
Thread 2 Drill Dimensions
0.172 in
Thread B1 Drill Dimensions
0.281 in
Thread Size
7/16-20, 1/4-18

Product Questions & Answers (1)

Question by: Roy D on Jul 20, 2025, 7:27 AM
What's the deal with the swivel end? Does it need extra tightening or anything special when you're hooking it up?
Answer by: Customer Support on Jul 21, 2025, 5:05 PM
The swivel on the JIC end is there to make connecting your hydraulic lines easier. You shouldn't need to overtighten it; just make sure it's snug according to standard JIC fitting practices, and that the 37-degree flare seats properly.
