04FP-05FJS Straight

Description & Features

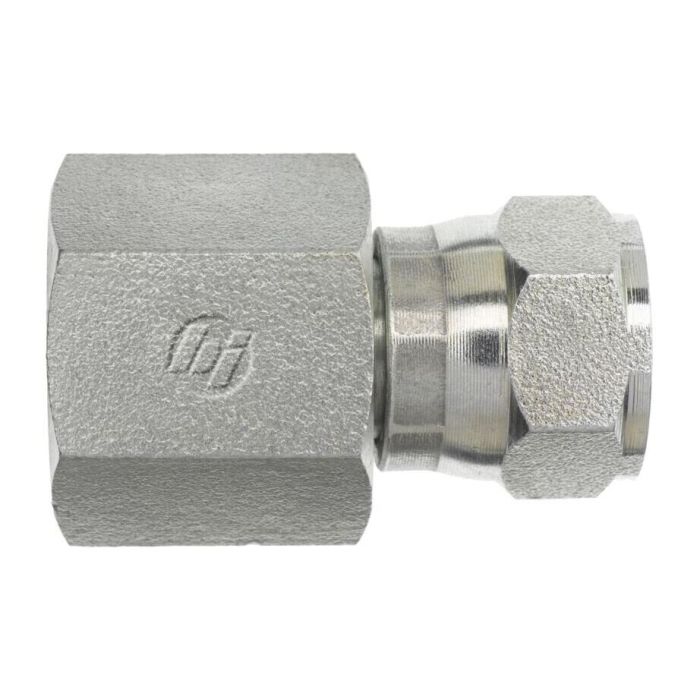

This straight fitting is crafted from high-quality straight steel, ensuring durability and reliability in demanding industrial environments. Designed for versatility, it features a Female NPTF thread (1/4-18) on one end, adhering to SAE J476 standards, and a Female JIC Swivel 37-degree flare (1/2-20) on the other, compliant with SAE J514 standards. The 04FP-05FJS Straight fitting is part of the Brennan Series 6506, known for precision and compatibility in hydraulic systems.

With an overall length of 1.590 mm and a hex size of 0.625 mm, this component integrates seamlessly into various hydraulic assemblies. The dual-thread configuration makes it ideal for connecting hoses and components in high-pressure hydraulic systems, providing a secure and leak-free connection. It is manufactured by Brennan Industries, a leader in hydraulic fittings, ensuring high standards of quality and performance.

SKU: 6506-04-05

Supplier Part Number (MPN): 6506-04-05

Alternate Part Numbers: A2242-4-5S

Specifications

Brand BRENNAN	Connection Size 1 5/16 in	Connection Size 2 1/4 in	Connection Type Female JIC Swivel, FNPT	Connection Type 1 Female SAE 37 deg JIC Flare Swivel	Connection Type 2 Female SAE NPTF	Dimension Standards SAE J476, SAE J514	Dimensions 1.59 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 0.75 x 0.62 in	l2 Dimensions 1.21 in	Material Steel	Material Construction AISI 12L14/1045 Steel	Maximum Operating Pressure 5000 psi	Series 6506 Series	Thread 2 Drill Dimensions 0.234 in	Thread B1 Drill Dimensions 0.281 in	Thread B2 Drill Dimensions 0.234 in	Thread Size 1/2-20 x 1/4-18

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size
6506-02-04	1/4 in	1/8 in	1/8-27, 7/16-20
6506-04-02	1/8 in	1/4 in	1/4-18 x 5/16-24
6506-04-04	1/4 in	1/4 in	7/16-20, 1/4-18
6506-04-06 Steel Female NPT To JIC Adapter	3/8 in	1/4 in	1/4-18 x 9/16-18
6506-06-04	1/4 in	3/8 in	7/16-20 x 3/8-18
6506-06-06	3/8 in	3/8 in	3/8-18, 9/16-18
6506-06-08	1/2 in	3/8 in	3/4-16 x 3/8-18
6506-06-10	5/8 in	3/8 in	7/8-14 x 3/8-18
6506-08-06	3/8 in	1/2 in	1/2-14 x 9/16-18
6506-08-08	1/2 in	1/2 in	3/4-16 x 1/2-14
6506-08-10	5/8 in	1/2 in	1/2-14 x 7/8-14
6506-08-12	3/4 in	1/2 in	1-1/16-12 x 1/2-14
6506-12-10	5/8 in	5/8 in	3/4-14, 7/8-14
6506-12-12	3/4 in	3/4 in	1-1/16-12 x 3/4-14
6506-12-14	7/8 in	3/4 in	1-3/16-12 x 3/4-14
6506-16-16	1 in	1 in	1-5/16-12 x 1-11-1/2 x 1-5/16-12
6506-20-20	1-1/4 in	1-1/4 in	1-1/4-11-1/2, 1-5/8-12
6506-24-24	1-1/2 in	1-1/2 in	1-7/8-12, 1-1/2-11-1/2
6506-32-32	2 in	2 in	2-1/2-12 x 2-11-1/2

Product Questions & Answers (1)

Question by: Patty K on Oct 23, 2025, 1:44 PM

Hey, will this fitting work to connect a hose with a 1/2-20 JIC swivel to somethin' with a 1/4-18 NPTF thread?

Answer by: Customer Support on Oct 25, 2025, 6:22 AM

Yes, sir, that's exactly what this is designed to do. It's got the 1/2-20 JIC swivel on one end and the 1/4-18 NPTF on the other, so it should work just fine for that.
