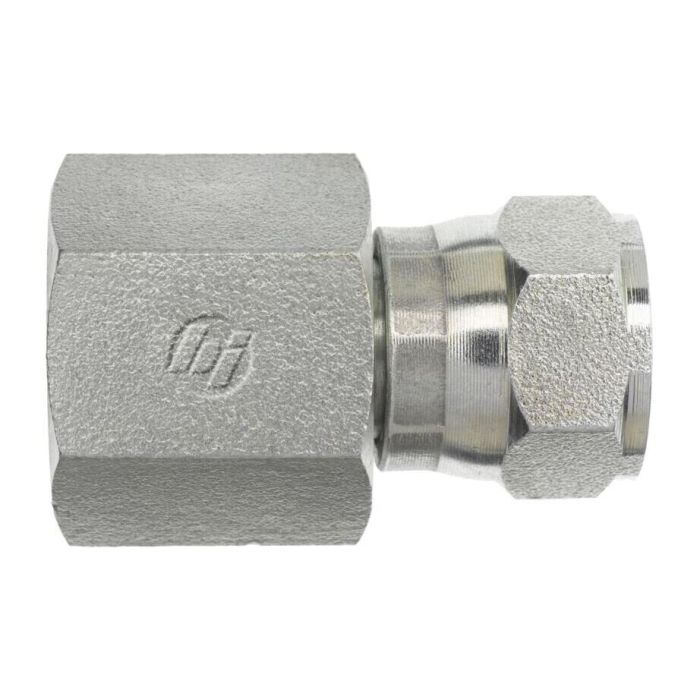

06FP-06FJS STRAIGHT

Description & Features

Produced by Brennan Industries Inc, this durable and precise adapter is constructed of straight steel, ensuring long-lasting performance and reliability. The adapter features a female NPTF thread type and a JIC swivel with a 37-degree flare, compliant with SAE J476 and SAE J514 standards. The overall length of the adapter is 1.685 mm, with a C Hex measurement of 0.688 mm. Additionally, the adapter's threads are meticulously designed for optimal compatibility and secure connections.

With a 3/8-18 thread size on one end and a 9/16-18 thread size on the other, this adapter is versatile and suitable for a range of industrial applications. Built to precise specifications, this adapter is a key component in ensuring efficient and reliable connections in various systems.

Supplier Part Number: 6506-06-06

Specifications

Connection Size 1 3/8 in	Connection Size 2 3/8 in	Connection Type Female JIC Swivel, FNPT	Connection Type 1 Female SAE 37 deg JIC Flare Swivel	Connection Type 2 Female SAE NPTF	Dimension Standards SAE J476, SAE J514	Dimensions 1.69 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 11/16 x 7/8 in	l2 Dimensions 1.31 in	Material Steel	Material Construction AISI 12L14/1045 Steel	Maximum Operating Pressure 5000 psi	Series 6506 Series	Thread 2 Drill Dimensions 0.297 in	Thread B1 Drill Dimensions 0.406 in	Thread B2 Drill Dimensions 0.297 in	Thread Size 3/8-18, 9/16-18

Product Questions & Answers (1)

Question by: Rick R on Sep 30, 2025, 9:46 AM

trying to hook a female NPTF port to a JIC line, is this the right adapter?

Answer by: Customer Support on Oct 2, 2025, 7:59 AM

For that hookup, it matches a female NPTF thread on one end and a female JIC swivel with a 37 degree flare on the other. The NPTF side is 3/8-18 per SAE J476, and the JIC swivel side is 9/16-18 per SAE J514.
