06FP-08FJS STAINLESS

Ask A Question

Description & Features

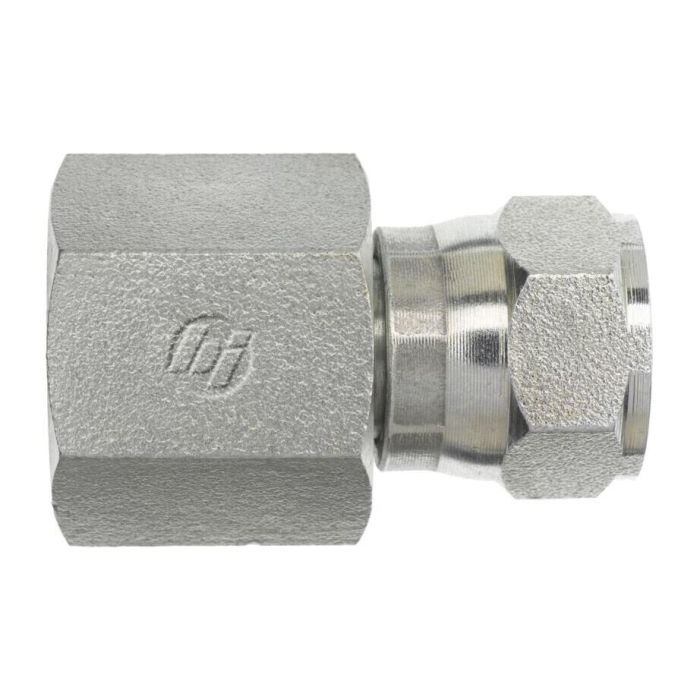

A straight stainless steel fitting designed for hydraulic systems requiring corrosion-resistant connections between NPTF and JIC line ends. The 06FP-08FJS Stainless accepts a 3/8-18 Female NPTF thread on one end, conforming to SAE J476, and a 3/4-16 Female JIC Swivel 37-degree flare on the other, conforming to SAE J514. The swivel design on the JIC end allows for easier installation and alignment without rotating the connected line.

Manufactured by Brennan Industries as part of the 6506 Series, this fitting is constructed from stainless steel, making it well suited for hydraulic circuits exposed to moisture, aggressive fluids, or environments where carbon steel fittings would be prone to corrosion. The hex across-flats dimension of 0.875 inches facilitates standard wrench engagement during installation.

SKU: 6506-06-08-SS

Supplier Part Number (MPN): 6506-06-08-SS

Specifications

Brand
BRENNAN
Connection Size 1
1/2 in
Connection Size 2
3/8 in
Connection Type
Female JIC Swivel, FNPT
Connection Type 1
Female SAE 37 deg JIC Flare Swivel
Connection Type 2
Female SAE NPTF
Dimension Standards
SAE J476, SAE J514
Dimensions
1.78 in L
Fitting Type
Adapter
Hex Size
7/8 in
l2 Dimensions
1.36 in
Material
Stainless Steel
Material Construction
316/316L Stainless Steel
Maximum Operating Pressure
5000 psi
Series
6506 Series
Thread 2 Drill Dimensions
0.391 in
Thread B1 Drill Dimensions
0.406 in
Thread Size
3/4-16 x 3/8-18

Product Questions & Answers (1)

Question by: Lyle T on Aug 2, 2025, 3:00 PM
Will this here fitting hold up if I'm usin' it with some pretty harsh chemicals?
Answer by: Customer Support on Aug 3, 2025, 5:32 PM
Constructed from stainless steel, this fitting is well-suited for hydraulic circuits that are exposed to moisture or aggressive fluids where regular carbon steel would corrode.
