main product photo

06FP-08FJS STRAIGHT

Ask A Question

Description & Features

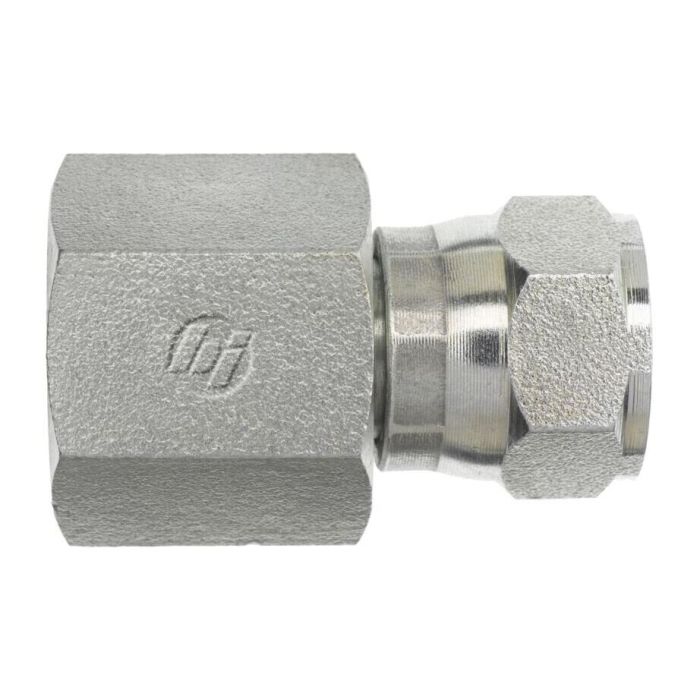

The 06FP-08FJS Straight by Brennan Industries Inc ensures reliable performance and durability. Engineered with straight steel, it is designed to meet rigorous industrial standards. The female NPTF thread type is built to SAE J476 specifications, while the female JIC swivel 37-degree flare follows the SAE J514 standards.

With an overall length of 1.780 inches and a second overall length of 1.360 inches, this product delivers the dimensions required for various industrial applications. The thread sizes are 3/8-18 for B1 and 3/4-16 for B2, providing compatibility with a range of fittings and hoses.

The hex size of 0.875 millimeters ensures a secure fit and ease of assembly. This part is classified under the 6506 series, making it a valuable component for systems requiring high precision and strength.

Supplier Part Number: 6506-06-08

This product contains steel, which is durable and long-lasting, making it suitable for demanding environments.

Note: California residents should be aware of the PROP-65 warning associated with this product.

Specifications

Connection Size 1
1/2 in
Connection Size 2
3/8 in
Connection Type
Female JIC Swivel, FNPT
Connection Type 1
Female SAE 37 deg JIC Flare Swivel
Connection Type 2
Female SAE NPTF
Dimension Standards
SAE J476, SAE J514
Dimensions
1.78 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
7/8 in
l2 Dimensions
1.36 in
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
5000 psi
Series
6506 Series
Thread 2 Drill Dimensions
0.391 in
Thread B1 Drill Dimensions
0.406 in
Thread B2 Drill Dimensions
0.391 in
Thread Size
3/4-16 x 3/8-18

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Dwight W on Jun 7, 2025, 3:41 PM
trying to swap out an old adapter. is this one female NPTF on one side and a female JIC swivel 37 degree on the other?
Answer by: Customer Support on Jun 8, 2025, 5:02 PM
On the B1 end it has a female NPTF thread, 3/8-18, built to SAE J476. The B2 end is a female JIC swivel 37 degree flare, 3/4-16, built to SAE J514.
