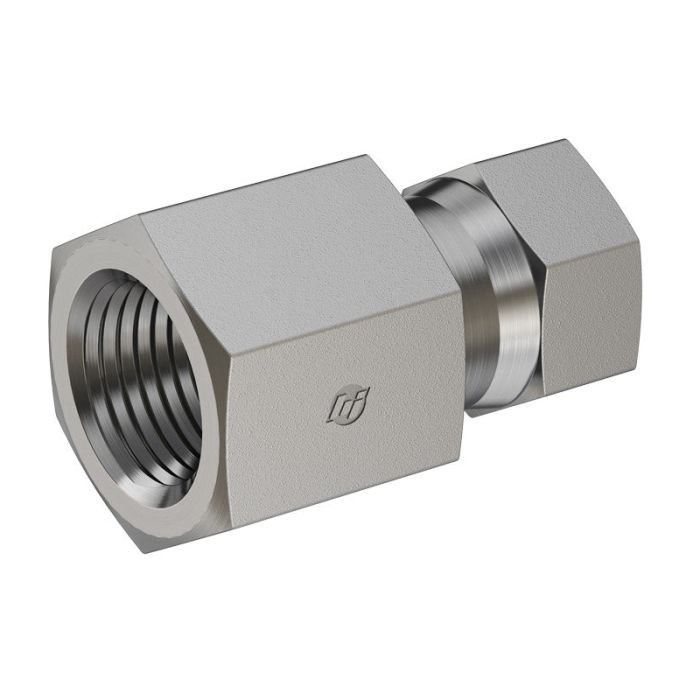

08FP-06FJS STRAIGHT STNLS

Ask A Question

Description & Features

Crafted from durable stainless steel, the 08FP-06FJS STRAIGHT STNLS fitting is designed for high-performance hydraulic applications. It features a Female NPTF (National Pipe Taper Fuel) connection with a 1/2-14 thread size, ensuring a secure and reliable seal. The opposite end is equipped with a Female JIC Swivel 37 Degree Flare fitting, sized at 9/16-18, which adheres to SAE J514 standards for seamless integration with compatible systems.

With an overall length of 1.920 mm and a compact hex size of 0.688 mm, this fitting is ideal for tight spaces where precision is key. The component is part of the Brennan series 6506, reflecting its compliance with industry standards like SAE J476. Suitable for various industrial settings, this product offers versatility and reliability for demanding hydraulic applications.

SKU: 6506-08-06-SS

Supplier Part Number (MPN): 6506-08-06-SS

Specifications

Brand
BRENNAN
Connection Size 1
3/8 in
Connection Size 2
1/2 in
Connection Type
Female JIC Swivel, FNPT
Connection Type 1
Female SAE 37 deg JIC Flare Swivel
Connection Type 2
Female SAE NPTF
Dimension Standards
SAE J476, SAE J514
Dimensions
1.92 in L
Fitting Type
Adapter
Hex Size
0.69 x 1.125 in
l2 Dimensions
1.54 in
Material
Stainless Steel
Material Construction
316/316L Stainless Steel
Maximum Operating Pressure
5000 psi
Series
6506 Series
Thread 2 Drill Dimensions
0.297 in
Thread B1 Drill Dimensions
0.531 in
Thread Size
1/2-14 x 9/16-18

Product Questions & Answers (1)

Question by: Rhonda H on Nov 5, 2025, 5:13 PM
What's the deal with the two different thread sizes on this thing?
Answer by: Customer Support on Nov 6, 2025, 6:18 PM
It's got a 1/2-14 Female NPTF on one end, and a 9/16-18 Female JIC Swivel 37 Degree Flare on the other. They're made to fit different standards.
