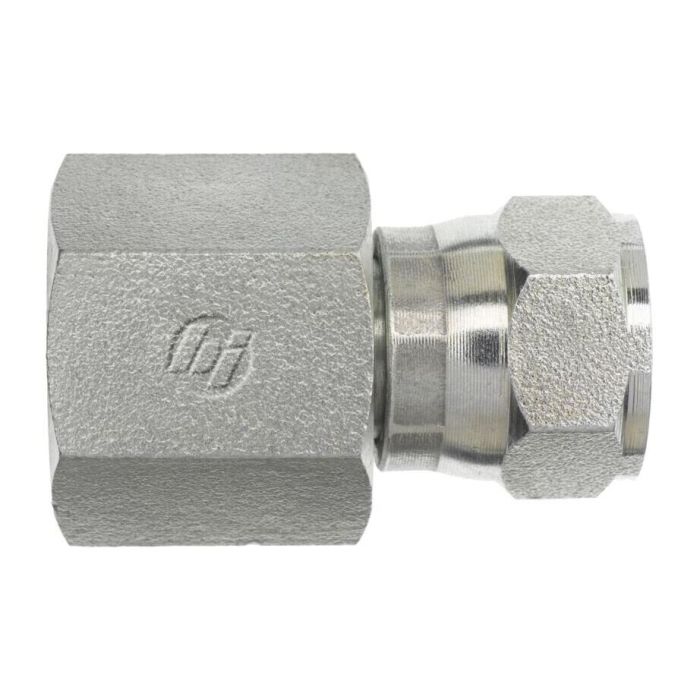

main product photo

08FP-06FJS STRAIGHT

Ask A Question

Description & Features

Crafted from durable straight steel, the 08FP-06FJS Straight by Brennan Industries Inc. offers reliable and high-performance connectivity in industrial applications. This component is designed with a Female NPTF thread type in compliance with SAE J476 standards and a Female JIC Swivel 37-degree flare adhering to SAE J514 standards.

Its overall length of 1.920 mm and a hex size of 0.688 mm ensures a secure fit. The dual-thread system comprises a 1/2-14 thread size and a secondary thread size of 9/16-18, making it suitable for varied industrial requirements.

For California residents, please note the PROP-65 warning. The deliberate integration of precise measurements and compliant specifications makes this item a valuable addition to any technical setup.

Supplier Part Number: 6506-08-06

Specifications

Connection Size 1
3/8 in
Connection Size 2
1/2 in
Connection Type
Female JIC Swivel, FNPT
Connection Type 1
Female SAE 37 deg JIC Flare Swivel
Connection Type 2
Female SAE NPTF
Dimension Standards
SAE J476, SAE J514
Dimensions
1.92 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
0.69 x 1.125 in
l2 Dimensions
1.54 in
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
5000 psi
Series
6506 Series
Thread 2 Drill Dimensions
0.297 in
Thread B1 Drill Dimensions
0.531 in
Thread B2 Drill Dimensions
0.297 in
Thread Size
1/2-14 x 9/16-18

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Duane H on Jan 1, 2026, 7:58 PM
thread on the JIC side is 9/16-18, does that swivel freely or is it fixed once you torque it down?
Answer by: Customer Support on Jan 3, 2026, 6:47 AM
The JIC end on this fitting is a swivel type, so it stays rotatable until you fully seat and tighten it. That's the whole point of the swivel design, lets you line up your hose or tube without twisting the line during assembly. Once torqued, it locks in place. The 37-degree flare seats against a matching flare on the mating component, which is your standard JIC connection per SAE J514.
Question by: Jimmy H on Nov 17, 2025, 3:33 PM
Wondering if this fitting will work with my setup. I got a 1/2 NPTF and need to connect to a 9/16 JIC.
Answer by: Customer Support on Nov 18, 2025, 4:34 PM
This straight fitting is designed for exactly that kind of connection, with a 1/2-14 Female NPTF thread and a 9/16-18 Female JIC Swivel.
Question by: Neal G on Feb 13, 2026, 2:35 PM
got a hose end that’s 9/16-18 JIC swivel, will this straight adapter mate up with it and what’s on the other side?
Answer by: Customer Support on Feb 14, 2026, 6:47 PM
On the JIC side, it has a female JIC swivel with a 37 degree flare in 9/16-18 (SAE J514). The other end is a female NPTF pipe thread in 1/2-14 (SAE J476), so it’s meant to connect a 9/16-18 JIC male flare to a 1/2-14 NPTF male pipe thread.
