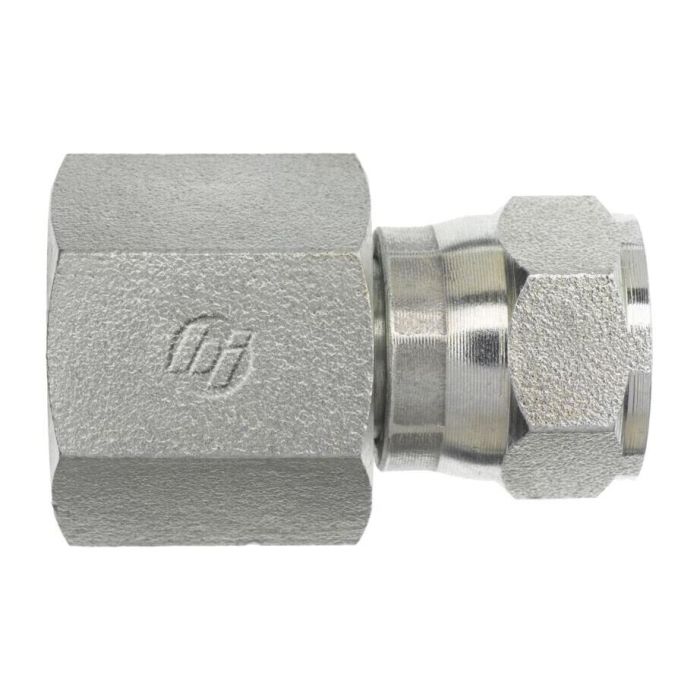

08FP-08FJS STRAIGHT

Description & Features

The 08FP-08FJS STRAIGHT from Brennan Industries Inc is engineered for industrial applications demanding reliable connections. Constructed from straight steel, this component ensures durability and resistance to wear under rigorous conditions.

This item features a 1/2-14 female NPTF thread and a 3/4-16 female JIC swivel 37-degree flare, adhering to SAE J476 and SAE J514 standards respectively. Its overall length is 1.910 mm, while the secondary length measures 1.480 mm.

The product boasts a C hex size of 0.875 mm, ensuring a secure fit in various setups. The drill sizes for threads B1 and B2 are 0.531 mm and 0.391 mm respectively, tailored for precise applications.

Supplier Part Number: 6506-08-08

California Residents: PROP-65 WARNING

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6506-08-08	Product Weight 0.28 lbs

Product Questions & Answers (1)

Question by: Daryl W on Apr 14, 2025, 2:33 PM

got a port on my pump that's 1/2 NPTF female and the hose end is a 3/4-16 JIC swivel, this the right fitting to tie those two together?

Answer by: Customer Support on Apr 15, 2025, 3:39 PM

That's exactly what this fitting is built for. One end is a 1/2-14 female NPTF, the other is a 3/4-16 female JIC swivel with a 37-degree flare. Both threads match what you're describing, so it should connect those two points straight up with no adapters in between.
