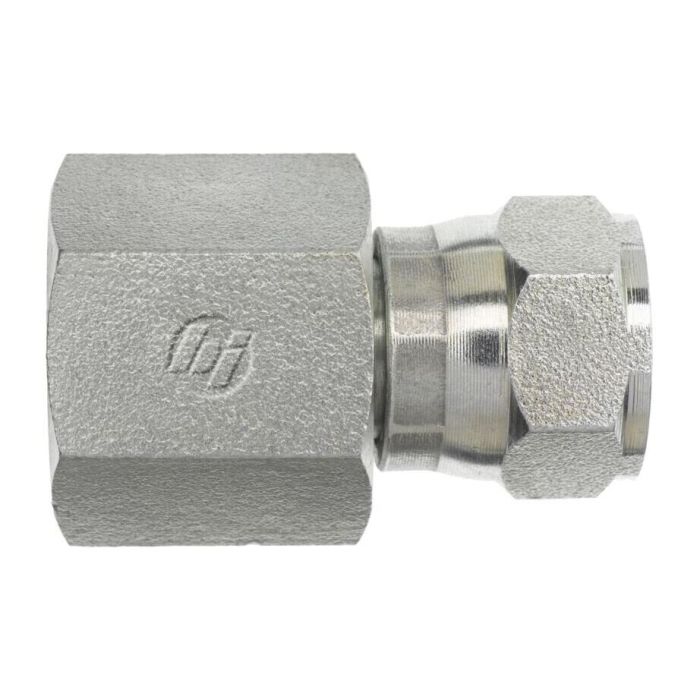

08FP-12FJS STRAIGHT

Ask A Question

Description & Features

This straight fitting features a female NPTF thread and a female JIC swivel 37-degree flare.

The 08FP-12FJS STRAIGHT is manufactured from steel.

Thread B1 has a 1/2-14 size and SAE J476 specification. Thread B2 has a 1-1/16-12 size and SAE J514 specification.

SKU: 6506-08-12

Supplier Part Number (MPN): 6506-08-12

Alternate Part Numbers: A2242-8-12S

Specifications

Connection Size 1
3/4 in
Connection Size 2
1/2 in
Connection Type
Female JIC Swivel, FNPT
Connection Type 1
Female SAE 37 deg JIC Flare Swivel
Connection Type 2
Female SAE NPTF
Dimension Standards
SAE J476, SAE J514
Dimensions
2.22 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1-1/4 x 1-1/8 in
l2 Dimensions
1.66 in
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
4000 psi
Series
6506 Series
Thread 2 Drill Dimensions
0.609 in
Thread B1 Drill Dimensions
0.531 in
Thread B2 Drill Dimensions
0.609 in
Thread Size
1-1/16-12 x 1/2-14

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Hubert R on Nov 27, 2025, 4:17 PM
got a 1/2 NPTF port on a manifold block and need to tie into a 1-1/16-12 JIC line, this the right adapter for that?
Answer by: Customer Support on Nov 29, 2025, 9:42 AM
That's what this fitting handles. One end is a 1/2-14 female NPTF thread, which mates with a standard 1/2 NPTF male port, and the other end is a 1-1/16-12 female JIC swivel with a 37-degree flare seat. The swivel feature on the JIC side makes it a lot easier to get the line positioned without fighting the fitting. Steel construction, so it holds up in working hydraulic environments without issue.
