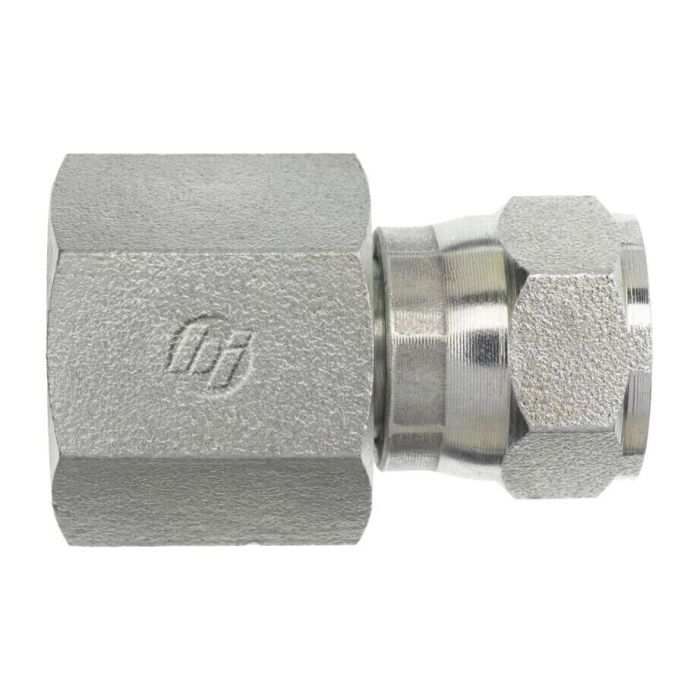

main product photo

12FP-10FJS STRAIGHT

Ask A Question

Description & Features

The 12FP-10FJS Straight is a versatile adapter from Brennan Industries Inc, engineered with precision for demanding applications. Its robust construction is achieved using straight steel, ensuring reliable performance and durability.

Featuring Female NPTF threads compliant with SAE J476 specifications, and Female JIC Swivel 37 Degree Flare threads meeting SAE J514 standards, this adapter delivers excellent compatibility and ease of integration.

The adapterrsquo;s dimensions include an overall length of 2.180 mm and a secondary length of 1.680 mm, with hex size 1.000 mm. Thread sizes are 3/4-14 and 7/8-14, accommodating various fittings and connections.

Designed for industry-specific parts, the 12FP-10FJS Straight ensures a secure and optimal fit for technical applications. Please note, it is subject to Prop 65 warnings for California residents.

Supplier Part Number: 6506-12-10

Specifications

Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Female JIC Swivel, FNPT
Connection Type 1
Female SAE 37 deg JIC Flare Swivel
Connection Type 2
Female SAE NPTF
Dimension Standards
SAE J476, SAE J514
Dimensions
2.18 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1 x 1-3/8 in
l2 Dimensions
1.68 in
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
5000 psi
Series
6506 Series
Thread 2 Drill Dimensions
0.484 in
Thread B1 Drill Dimensions
0.719 in
Thread B2 Drill Dimensions
0.484 in
Thread Size
3/4-14, 7/8-14

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Ralph A on Jul 11, 2025, 5:53 PM
Got a 3/4-14 NPTF port on a manifold block and need to tie into a JIC line coming off a hydraulic pump. This the right adapter for that hookup?
Answer by: Customer Support on Jul 13, 2025, 10:12 AM
That combination lines up exactly with what this adapter does. One end is a 3/4-14 Female NPTF built to SAE J476, and the other is a 7/8-14 Female JIC Swivel with a 37 degree flare per SAE J514. The swivel feature on the JIC side also makes it easier to get the line seated without fighting the orientation during assembly.
