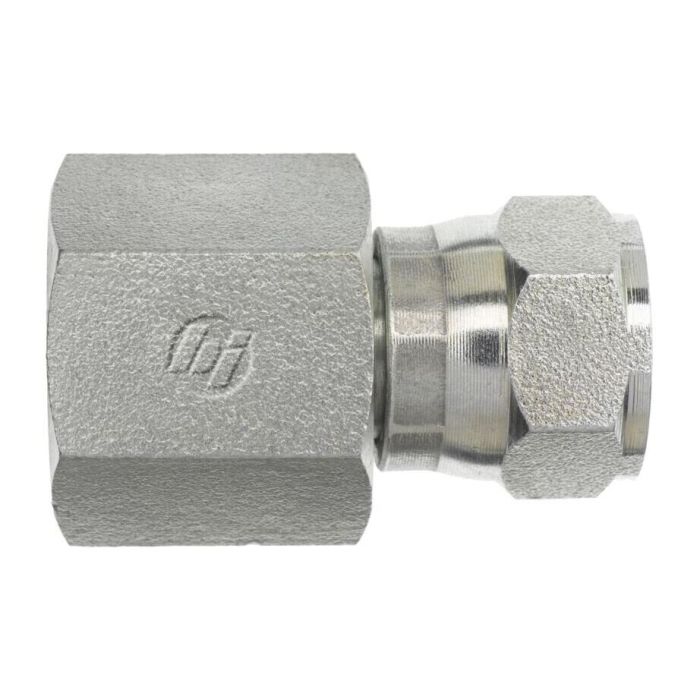

main product photo

12FP-12FJS STRAIGHT

Ask A Question

Description & Features

The 12FP-12FJS Straight from Brennan Industries Inc is designed for reliability and efficiency in heavy-duty applications. Its primary construction material is straight steel, ensuring durability and longevity. This adapter features thread type B1 Female NPTF that conforms to SAE J476 standards, and thread type B2 Female JIC Swivel 37 Deg Flare following SAE J514 specifications, accommodating various industrial requirements.

The product has a C hex measurement of 1.250 mm and includes overall length dimensions of 2.290 mm and 1.720 mm respectively. With a B1 thread drill size of 0.719 mm and a B2 thread drill size of 0.609 mm, it is suited for precision fitting needs. Thread sizes are 3/4-14 for B1 and 1-1/16-12 for B2, ensuring a secure and functional connection.

Supplier Part Number: 6506-12-12

California Residents: PROP-65 WARNING

Specifications

Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Female JIC Swivel, FNPT
Connection Type 1
Female SAE 37 deg JIC Flare Swivel
Connection Type 2
Female SAE NPTF
Dimension Standards
SAE J476, SAE J514
Dimensions
2.28 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1-3/8 x 1-1/4 in
l2 Dimensions
1.72 in
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
4000 psi
Series
6506 Series
Thread 2 Drill Dimensions
0.609 in
Thread B1 Drill Dimensions
0.719 in
Thread B2 Drill Dimensions
0.609 in
Thread Size
1-1/16-12 x 3/4-14

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Darryl E on Apr 20, 2025, 7:39 PM
Does this adapter go from NPTF on one end to JIC on the other, or are both ends the same type?
Answer by: Customer Support on Apr 21, 2025, 8:07 PM
Two different thread types here. One end is a 3/4-14 Female NPTF, which follows SAE J476. The other end is a 1-1/16-12 Female JIC Swivel with a 37 degree flare, built to SAE J514. So yeah, it bridges those two thread standards in a straight configuration.
Question by: Melvin J on Dec 26, 2025, 11:29 AM
What kind of material is this fitting made of?
Answer by: Customer Support on Dec 28, 2025, 6:24 AM
This straight adapter is constructed from steel for durability.
Question by: Travis P on Dec 17, 2025, 2:05 PM
trying to hook a JIC hose end to an NPT port, is this the right adapter or am i missing something
Answer by: Customer Support on Dec 19, 2025, 6:02 AM
For that kind of hookup, it matches the usual thread types: one side is a 3/4-14 female NPTF (SAE J476) and the other side is a 1-1/16-12 female JIC swivel with a 37 degree flare (SAE J514). It is a straight adapter, so it connects those two standards without an angle.
