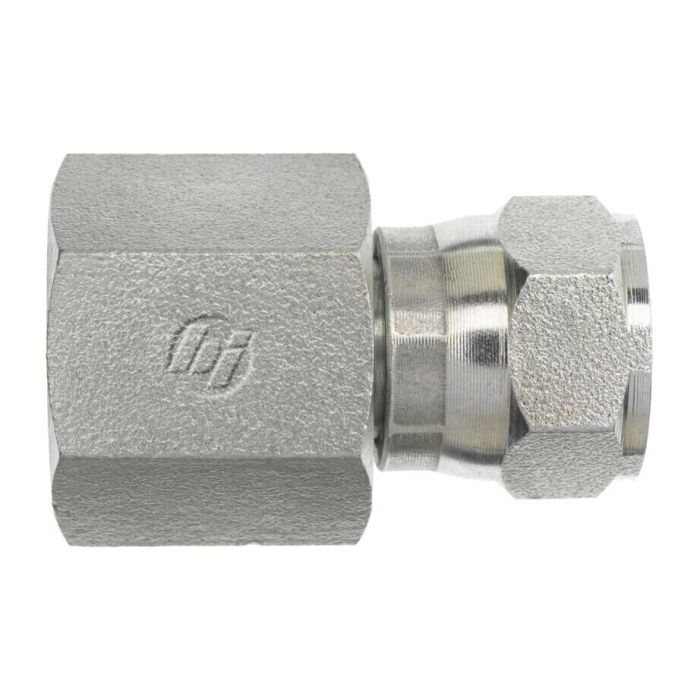

main product photo

12FP-14FJS STRAIGHT

Ask A Question

Description & Features

The 12FP-14FJS STRAIGHT, part of the 6506 series, is a steel straight fitting designed for hydraulic applications. It features a female NPTF thread conforming to SAE J476 standards.

This straight fitting also includes a female JIC swivel 37-degree flare thread, manufactured to SAE J514 specifications. The 12FP-14FJS STRAIGHT is made from quality raw materials and precisely machined for reliable performance.

SKU: 6506-12-14

Supplier Part Number (MPN): 6506-12-14

Alternate Part Numbers: A2242-12-14S

Specifications

Connection Size 1
7/8 in
Connection Size 2
3/4 in
Connection Type
Female JIC Swivel, FNPT
Connection Type 1
Female SAE 37 deg JIC Flare Swivel
Connection Type 2
Female SAE NPTF
Dimension Standards
SAE J476, SAE J514
Dimensions
2.34 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1-3/8 in
l2 Dimensions
1-3/4 in
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
3000 psi
Series
6506 Series
Thread 2 Drill Dimensions
0.719 in
Thread B1 Drill Dimensions
0.719 in
Thread B2 Drill Dimensions
0.719 in
Thread Size
1-3/16-12 x 3/4-14

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Roy B on Sep 24, 2025, 9:29 PM
got a hose end thats 3/4-14 female pipe, will this fitting mate up on that side?
Answer by: Customer Support on Sep 26, 2025, 12:25 PM
On the pipe-thread side, it has a female NPTF thread in 3/4-14, built to SAE J476, so it matches a 3/4-14 NPTF connection.
Question by: Ralph W on Aug 30, 2025, 12:22 PM
got a 3/4 NPTF port on my pump housing and need to run a JIC swivel line off it, this the right fitting to make that happen?
Answer by: Customer Support on Sep 1, 2025, 6:30 AM
That's what this fitting does. One end is a 3/4-14 female NPTF thread built to SAE J476, and the other is a 1-3/16-12 female JIC swivel with a 37-degree flare conforming to SAE J514. So if you've got a male NPTF stub on your pump and a male JIC tube end coming in from the other side, this straight fitting bridges those two connections in one piece.
