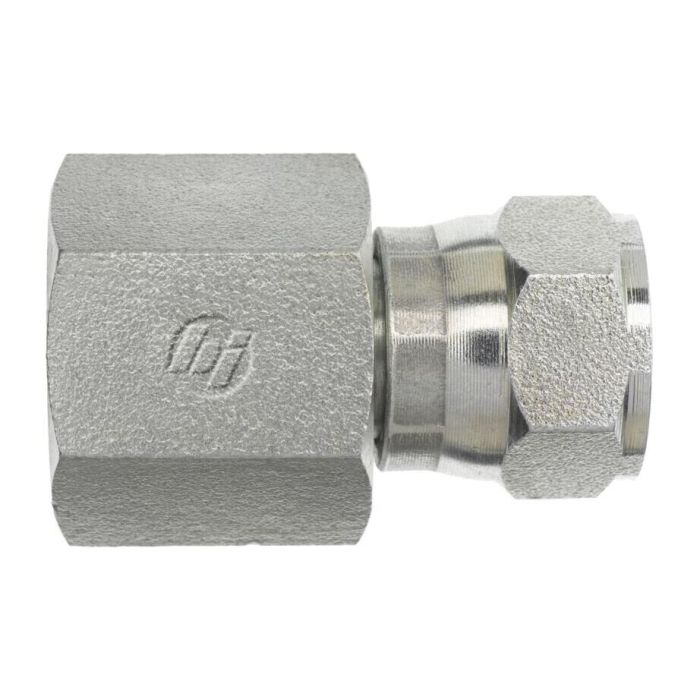

16FP-16FJS STRAIGHT

Description & Features

The Brennan Industries Inc 16FP-16FJS Straight is a precision-engineered component featuring a 2.614 mm overall length. Designed for seamless integration within specialized systems this product is constructed from high-quality straight steel ensuring durability and reliability.

The female NPTF threads comply with SAE J476 standards while the female JIC swivel 37-degree flare threads adhere to SAE J514 specifications. The hex size of 1.500 mm further enhances its robustness.

The 16FP-16FJS Straight incorporates a B1 drill size of 0.938 mm and a B2 drill size of 0.844 mm making it suitable for varying industrial applications. Its precise thread sizes of 1-11-1/2 and 1-5/16-12 respectively add to the product's flexibility.

Supplier Part Number: 6506-16-16

California Residents: PROP-65 WARNING

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6506-16-16	Product Weight 0.74 lbs

Product Questions & Answers (2)

Question by: Darryl T on Apr 16, 2025, 7:06 PM

What kind of threads does this fitting have on each end, and do they match up to standard hydraulic line connections?

Answer by: Customer Support on Apr 18, 2025, 5:59 PM

One end runs female NPTF at 1-11-1/2 threads per inch, built to SAE J476. The other end is a female JIC swivel with a 37-degree flare, sized at 1-5/16-12, conforming to SAE J514. Both are widely used thread types in hydraulic hydraulic connections, so they slot into standard NPTF pipe connections on one side and JIC flare fittings on the other without any adapter gymnastics.

Question by: Norm S on Jul 2, 2025, 8:00 PM

I'm needing somethin' to go from a female NPTF to a female JIC swivel. Will this do the trick?

Answer by: Customer Support on Jul 3, 2025, 9:46 PM

Yes, this straight adapter is designed to connect a female NPTF thread to a female JIC swivel 37-degree flare thread. It meets SAE J476 and SAE J514 specifications for those thread types.
