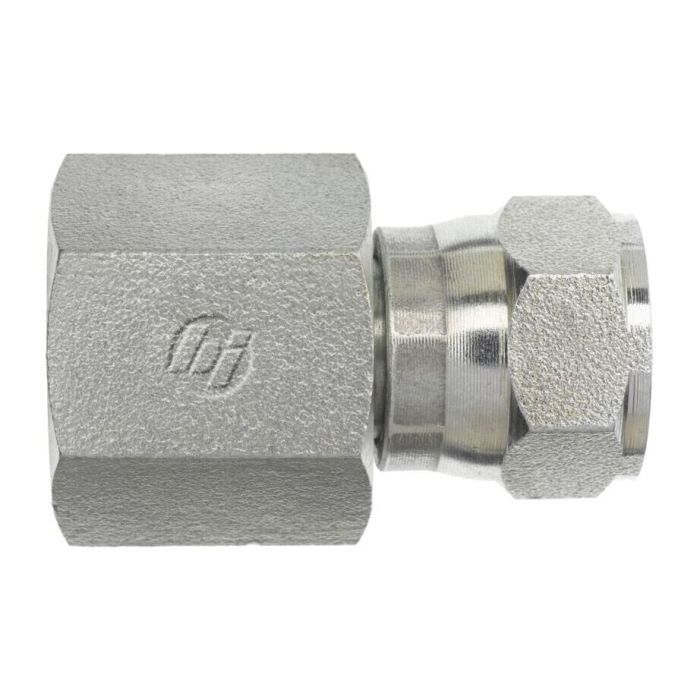

main product photo

24FP-24FJS STRAIGHT

Ask A Question

Description & Features

The 24FP-24FJS Straight adapter from Brennan Industries Inc is expertly designed for demanding industrial applications. Featuring a raw straight steel construction this adapter ensures durability and reliability in various environments.

With an overall length of 2.990 mm and an additional length of 2.270 mm it provides optimal fit and efficiency. The female NPTF thread of 1-1/2-11-1/2 meets SAE J476 standards while the female JIC Swivel 37-degree flare thread of 1-7/8-12 adheres to SAE J514 specifications ensuring compatibility with industry norms.

This product includes a C Hex dimension of 2.250 mm catering to precise industrial requirements. The adapter's robust build supports the efficient transfer of fluids and gases in high-pressure systems.

Supplier Part Number: 6506-24-24

California Residents: PROP-65 WARNING

Specifications

Connection Size 1
1-1/2 in
Connection Size 2
1-1/2 in
Connection Type
Female JIC Swivel, FNPT
Connection Type 1
Female SAE 37 deg JIC Flare Swivel
Connection Type 2
Female SAE NPTF
Dimension Standards
SAE J476, SAE J514
Dimensions
3 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
l2 Dimensions
2.27 in
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Series
6506 Series
Thread 2 Drill Dimensions
1.312 in
Thread B1 Drill Dimensions
1.5 in
Thread B2 Drill Dimensions
1.312 in
Thread Size
1-7/8-12, 1-1/2-11-1/2

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Gene R on Jul 9, 2025, 2:33 PM
Is this fitting gonna work with standard JIC fittings? Just wanna make sure before I order a bunch.
Answer by: Customer Support on Jul 10, 2025, 5:21 PM
For the JIC side, you'll be needing a female JIC swivel with a 37-degree flare, sized at 1-7/8-12 according to the SAE J514 spec.
Question by: Freddie H on Mar 26, 2026, 9:24 AM
Got a 1-1/2 NPTF female port on a manifold block and need to tie into a JIC swivel line, this the right adapter for that situation?
Answer by: Customer Support on Mar 28, 2026, 6:01 AM
That's the use case this one's built for. One end is a female NPTF thread sized 1-1/2-11-1/2, meeting SAE J476, and the other is a female JIC swivel 37-degree flare at 1-7/8-12, built to SAE J514. So if your manifold has that NPTF port and your hydraulic line terminates in a male JIC fitting, this adapter bridges the two cleanly in a straight configuration.
