ADAPTER

Description & Features

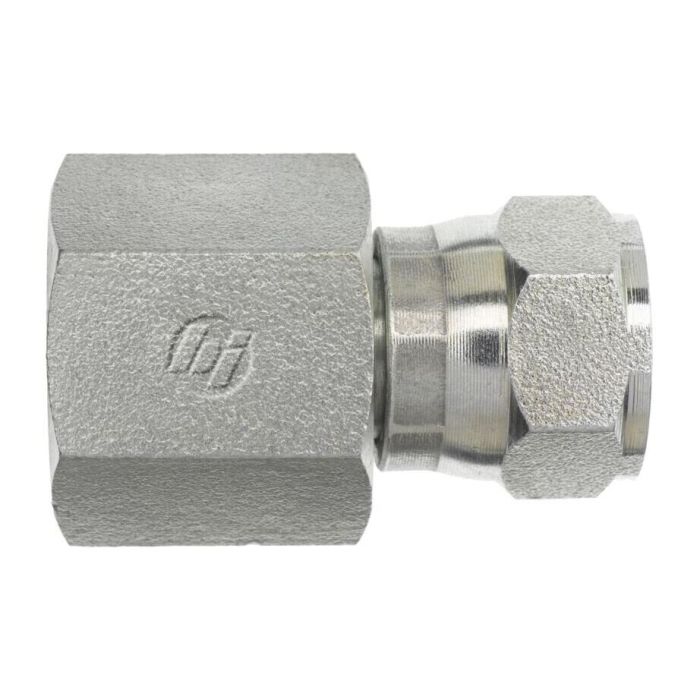

The ADAPTER by Brennan Industries Inc offers reliable quality and performance. Constructed from straight steel this adapter is engineered for demanding industrial applications.

Featuring a series 6506 design it includes a Female NPTF thread type at B1 compliant with SAE J476 specifications. The B1 size is 2-11-1/2 with a drill size of 1.938 mm.

Additionally it includes a Female JIC Swivel 37-degree flare thread type at B2 meeting SAE J514 standards. The B2 size is 2-1/2-12 with a drill size of 1.781 mm. The C hex dimension measures 2.875 mm.

The overall length of the adapter is 3.120 mm while L2 measures 2.260 mm.

Supplier Part Number: 6506-32-32

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6506-32-32	Product Weight 2.60 lbs

Product Questions & Answers (1)

Question by: Bobby O on Oct 25, 2025, 7:56 PM

both ports on this thing are female? just want to make sure before I order, got a 2 inch NPTF line on one end and a 2-1/2 JIC swivel on the other

Answer by: Customer Support on Oct 27, 2025, 6:12 AM

Correct on both counts. The B1 port is a 2-11-1/2 Female NPTF thread meeting SAE J476, and the B2 port is a 2-1/2-12 Female JIC Swivel with a 37-degree flare meeting SAE J514. So yes, both ends are female, which means you'll need male-threaded fittings on whatever you're connecting to each side.
