TESTPOINT 16MJ-16FJS STRT W/ 04FORB IN HEX

Description & Features

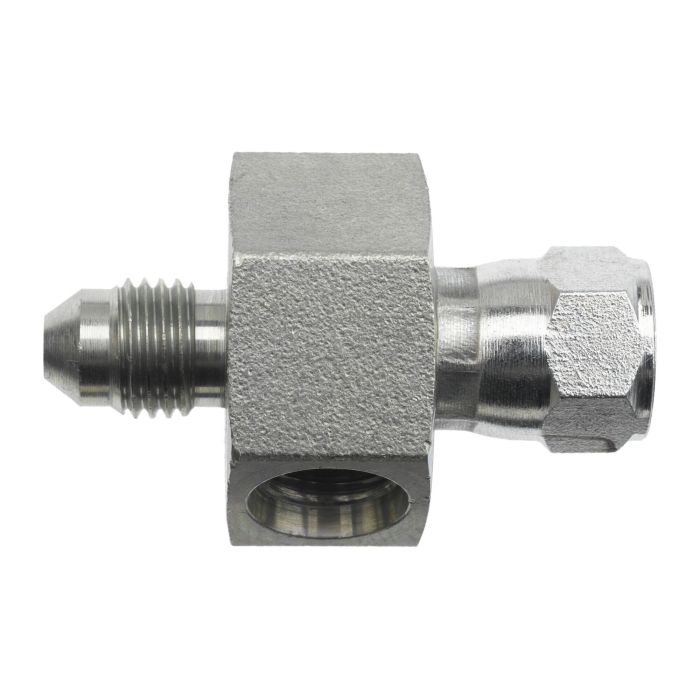

The Gauge Port Branch Tee by Brennan Industries Inc constructed from straight steel is designed for versatile use in industrial applications. Engineered with precise SAE J514 thread specifications it features a Male JIC SAE 37 Degree Flare and Female JIC Swivel 37 Degree Flare for seamless connectivity. The overall length measures 2.850 mm with a branch length of 2.250 mm.

Crafted for optimal performance the Tee includes a female SAE O-ring boss with a size of 7/16-20 mm and a drill size of 0.172 mm. The connection points offer a thread size of 1-5/16-12 mm and a drill size of 0.844 mm ensuring durability and reliability.

This component is suitable for a wide range of industrial needs making it an ideal choice for professionals seeking robust connection solutions. The product's versatile design adheres to SAE J514 standards facilitating easy integration into existing systems.

Supplier Part Number: 6564-16-16-04

PROP-65 WARNING for California residents.

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6564-16-16-04	Product Weight 1.00 lbs

Product Questions & Answers (3)

Question by: Kirk H on Feb 4, 2026, 9:14 PM

got a line running 1-5/16-12 JIC on both ends and need to pull a gauge port off it without breaking the main flow, this tee do that?

Answer by: Customer Support on Feb 6, 2026, 9:03 PM

That's the kind of work this fitting handles. The two main ports are both 1-5/16-12 JIC, one male flare and one female swivel, so you can drop it straight into an existing JIC line. The branch port off the side is a 7/16-20 female SAE O-ring boss, which is a standard gauge port size. Flow through the main line stays uninterrupted while the branch gives you a dedicated test or gauge connection. Straight steel construction, SAE J514 across all three threads.

Question by: Ray R on Jun 10, 2025, 9:17 AM

trying to add a test gauge on a line, is this the kind of tee that gives you a little gauge port off the side?

Answer by: Customer Support on Jun 11, 2025, 9:18 AM

Built as a gauge port branch tee, it gives you a main run with JIC 37 degree flare connections and a separate branch port for a gauge or testpoint style hookup. The branch is a female SAE O-ring boss thread in 7/16-20.

Question by: Sheila R on Feb 27, 2026, 3:18 PM

What size is that lil hex head where the gauge goes?

Answer by: Customer Support on Feb 28, 2026, 5:14 PM

The gauge port branch has a 1.500 mm C hex for the gauge connection.
