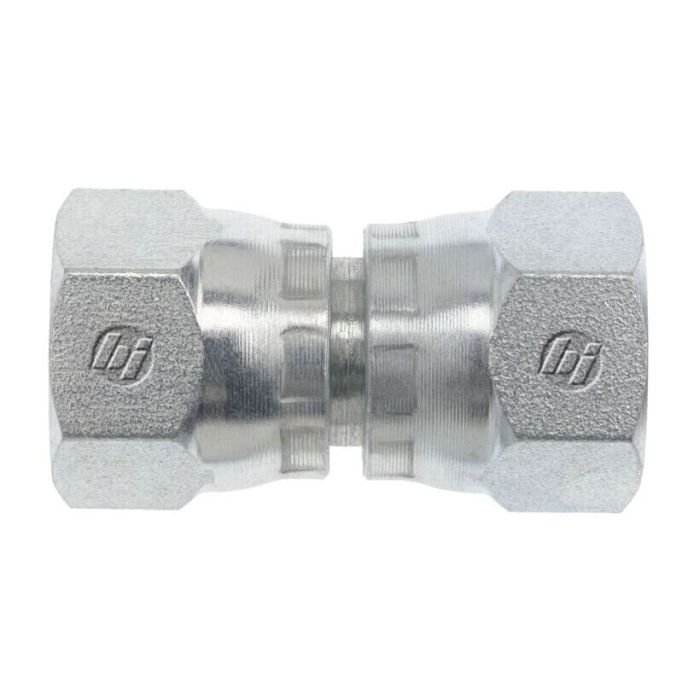

BRENNAN 05FJS-05FJS Straight

Description & Features

The BRENNAN 05FJS-05FJS straight fitting features female JIC swivel 37-degree flare connections on both ends, adhering to SAE J514 specifications. Each thread measures 1/2-20.

This straight steel fitting is part of the 6565 series and is designed for hydraulic applications.

SKU: 6565-05-05

Supplier Part Number (MPN): 6565-05-05

Specifications

Connection Size 1 5/16 in	Connection Size 2 5/16 in	Connection Type Female JIC Swivel	Connection Type 1 Female SAE 37 deg JIC Flare Swivel	Connection Type 2 Female SAE 37 deg JIC Flare Swivel	Dimension Standards SAE J514	Finish Zinc Trivalent	Fitting Type Union	Hex Size 5/8 in	Material Steel	Material Construction AISI 12L14/1045 Steel	Series 6565 Series	Thread B1 Drill Dimensions 0.234 in	Thread B2 Drill Dimensions 0.234 in	Thread Size 1/2-20

Product Questions & Answers (1)

Question by: Dustin R on Jun 21, 2025, 10:04 AM

Will this fitting hold up with regular hydraulic use, or is it more for light duty stuff?

Answer by: Customer Support on Jun 22, 2025, 7:09 PM

This straight fitting, made from steel and part of the 6565 series, is designed for hydraulic applications, so it should be able to handle regular use.
