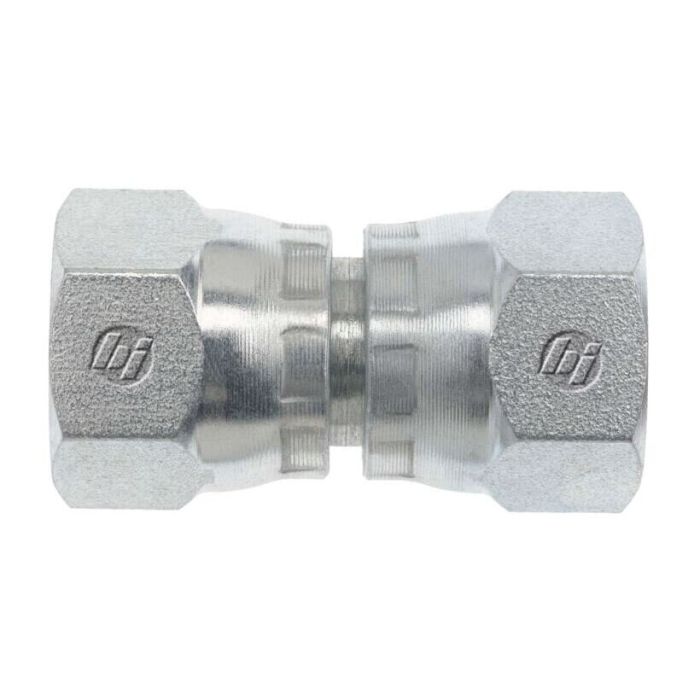

main product photo

16FJS-16FJS STRAIGHT

Ask A Question

Description & Features

The 16FJS-16FJS Straight fitting from Brennan Industries Inc. is a high-quality component constructed from straight steel designed for industrial fluid handling applications. Featuring a female JIC swivel 37-degree flare on both ends this fitting complies with SAE J514 specifications ensuring a reliable and secure connection.

Both hex sizes measure 1.500 mm providing ease of use and versatile compatibility. The overall length of the fitting is 2.390 mm with an additional length of 1.190 mm for varied installation requirements. Each end features a 1-5/16-12 thread size enabling robust and precise connectivity.

This fitting is suitable for use in systems requiring durable and trustworthy components to maintain fluid integrity. The use of high-grade materials offers longevity and steadfast performance in demanding environments. To comply with California's Prop 65 requirements a warning is included for residents.

Supplier Part Number: 6565-16-16

Specifications

Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Female JIC Swivel
Connection Type 1
Female SAE 37 deg JIC Flare Swivel
Connection Type 2
Female SAE 37 deg JIC Flare Swivel
Dimension Standards
SAE J514
Dimensions
2.39 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Union
Hex Size
1-1/2 in
l2 Dimensions
1.19 in
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
4000 psi
Series
6565 Series
Thread 2 Drill Dimensions
0.844 in
Thread B1 Drill Dimensions
0.844 in
Thread Size
1-5/16-12

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Earl A on May 31, 2025, 5:27 PM
What size thread does this thing use?
Answer by: Customer Support on Jun 2, 2025, 4:01 PM
It features a 1-5/16-12 thread size on both ends, ensuring a robust and precise connection according to SAE J514 specs.
Question by: Hugh H on Jul 27, 2025, 3:17 PM
Both ends on this thing are female JIC swivel, so what exactly is it hooking two of together, two hose ends, two male fittings, something else?
Answer by: Customer Support on Jul 29, 2025, 7:24 AM
Female JIC swivel fittings mate onto male JIC threaded ends, so this straight fitting connects two male JIC ports or male-terminated hose assemblies. Both ends carry a 37-degree flare seat and a 1-5/16-12 thread size, which is a -16 JIC size. The swivel feature on each end lets you rotate the fitting during installation without twisting the hoses, which saves a lot of headache when you're working in tight spots or threading into fixed ports from both sides.
Question by: Terry H on Jan 6, 2026, 4:04 PM
trying to swap out a straight JIC swivel, is this one female on both ends and 1-5/16-12?
Answer by: Customer Support on Jan 8, 2026, 6:01 AM
Built as a straight adapter with a female JIC swivel 37 degree flare on both ends, it uses 1-5/16-12 threads on each side and follows SAE J514.
