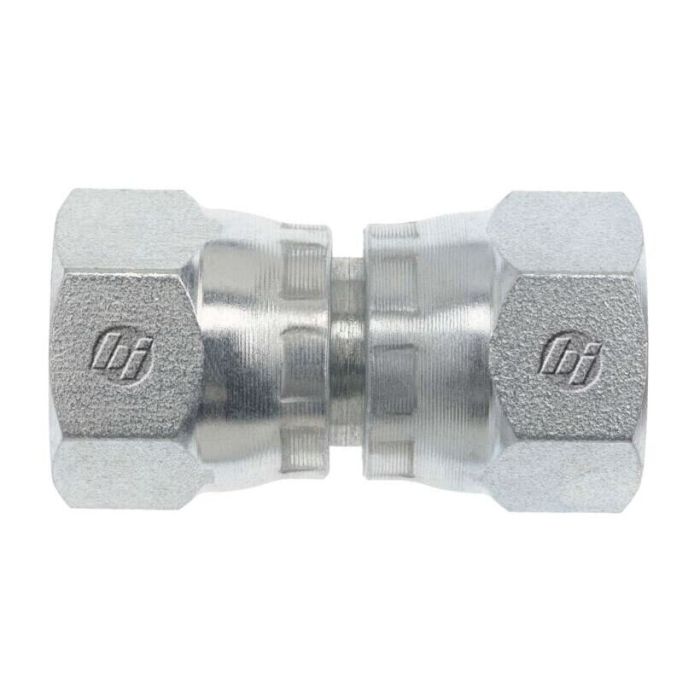

24FJS-24FJS STRAIGHT

Configured for same-size, same-type connections on both ends, the 24FJS-24FJS Straight is a steel union fitting that joins two 1-7/8-12 Female JIC Swivel 37-degree flare lines in a direct, in-line arrangement. Both threads conform to SAE J514, making this fitting suitable for hydraulic assemblies where a standardized, leak-resistant flare connection is required at each end.

Machined from straight steel, the fitting measures 2.910 inches in overall length, with a secondary length of 1.440 inches and a hex size of 2.250 inches on both ends. The 1.312-inch thread drill dimension is consistent across both ports. The symmetrical design simplifies installation in applications where identical port configurations are needed at both connection points.

California residents: Prop 65 Warning applies to this product.

SKU: 6565-24-24

Supplier Part Number (MPN): 6565-24-24

Alternate Part Numbers: 6510-24-24
