TESTPOINT 06MJ-06FJS STRT W/ 04FP HEX

Description & Features

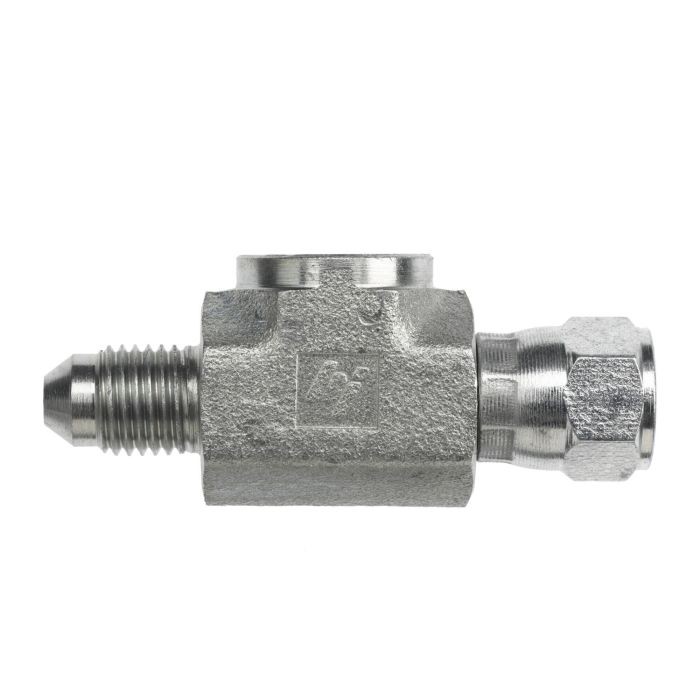

The TESTPOINT 06MJ-06FJS STRT W/ 04FP HEX by Brennan Industries Inc offers precision and reliability. This gauge port branch tee features a male JIC SAE 37-degree flare with a female JIC swivel 37-degree flare both with a thread size of 9/16-18 adhering to SAE J514 specifications.

The female NPTF thread sized at 1/4-18 meets SAE J476 standards ensuring secure connections. With an overall length of 2.160 mm and an overall length L2 of 1.780 mm this straight steel component is designed for exact fit and optimal performance.

The product includes a 04FP hex and a C hex measuring 0.688 mm offering robust and stable installation in various industrial settings. Thread 3 drill size is 0.281 mm further highlighting its precision engineering.

Supplier Part Number: 6574-06-06-04

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6574-06-06-04	Product Weight 1.00 lbs

Product Questions & Answers (1)

Question by: Earl M on Aug 18, 2025, 11:49 AM

thread sizes on this one got me second-guessin myself, the JIC ends are both 9/16-18 and the NPTF port is 1/4-18, that right?

Answer by: Customer Support on Aug 20, 2025, 9:29 AM

You got it exactly right. Both the male JIC and the female JIC swivel run 9/16-18, both conforming to SAE J514. The female NPTF branch port is the smaller one at 1/4-18, built to SAE J476. That size difference is pretty common on gauge port tees since the test point port doesn't need to carry the same flow as the main line connections.
