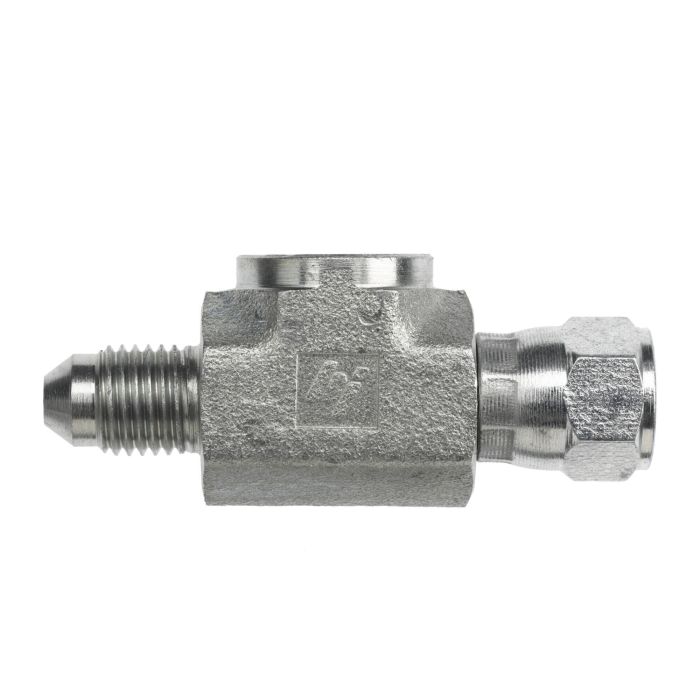

TESTPOINT 10MJ-10FJS STRT W/ 04FP HEX

Description & Features

The Testpoint 10MJ-10FJS STRT W/ 04FP HEX from Brennan Industries Inc is a straight steel gauge port branch tee engineered for precise industrial applications. Crafted from straight steel this product ensures durability and reliability in demanding environments.

The 1/4-18 female NPTF thread combined with the 7/8-14 male JIC SAE 37-degree flare provides a secure and leak-proof connection. Its compatibility with SAE J476 and SAE J514 thread specifications confirms high standards of quality and functionality.

This versatile component features multiple thread types including female JIC swivel 37-degree flare connections making it suitable for complex assemblies. The overall length dimensions of 3.070 mm and 2.570 mm along with the 1-inch hex offer ease of installation and maintenance.

Supplier Part Number: 6574-10-10-04.

MPN: 6574-10-10-04.

Specifications

Brand
Brennan Industries Inc
Brand
Brennan Industries
Pack Size
1.00
UOM
EA
Supplier Part Number
6574-10-10-04
Product Weight
1.00 lbs

Product Questions & Answers (2)

Question by: Johnny M on May 18, 2025, 8:43 PM
got a gauge port branch tee setup on a hydraulic line and need to know if the male JIC end is a 37-degree flare -- that right for this one?
Answer by: Customer Support on May 20, 2025, 6:46 PM
the male JIC connection on this fitting is a 37-degree SAE flare, sized at 7/8-14. It meets SAE J514, so it'll mate up correctly with standard JIC fittings in that same spec family. The female swivel side is also 7/8-14 with the same 37-degree flare geometry, so both JIC ports are matched. The third port is a 1/4-18 female NPTF, which is your gauge port connection conforming to SAE J476.
Question by: Vince A on May 21, 2025, 5:57 PM
trying to replace a little gauge port tee i got, is this one the kind with 7/8-14 JIC and a 1/4-18 NPTF port?
Answer by: Customer Support on May 23, 2025, 8:54 AM
Match the three ends and you are in the right family. It has a 7/8-14 male JIC SAE 37 degree flare on one side, a 7/8-14 female JIC swivel 37 degree flare on the other, and the branch port is 1/4-18 female NPTF.
