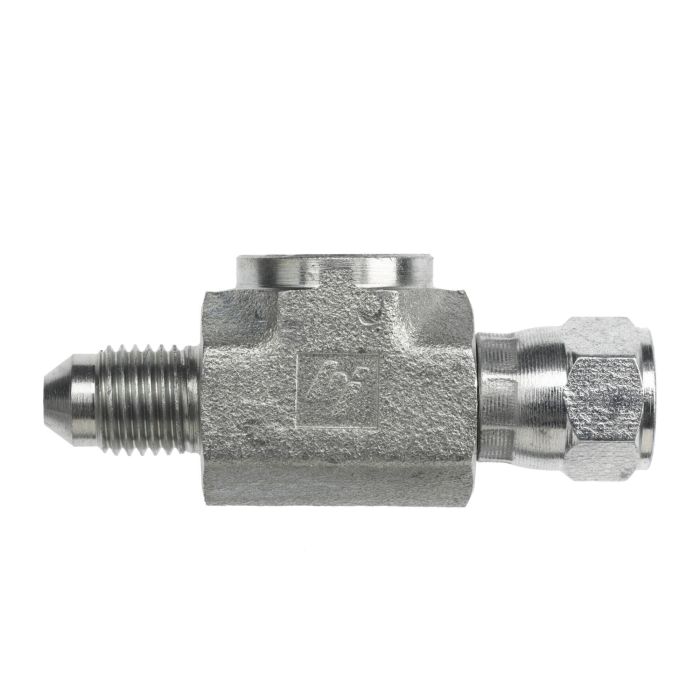

TESTPOINT 20MJ-20FJS STRT W/ 04FP HEX

Description & Features

Designed for gauge port branch tee applications, the Testpoint 20MJ-20FJS Strt W/ 04FP Hex is a straight steel fitting from Brennan's Series 6574. It combines a 1-5/8-12 Male JIC SAE 37-degree flare (SAE J514) with a matching 1-5/8-12 Female JIC swivel 37-degree flare on the inline ports, and a 1/4-18 Female Nptf gauge port (SAE J476) on the branch, making it well-suited for integrating test points into high-pressure hydraulic lines without interrupting flow.

Constructed from straight steel, this fitting measures 4.370 inches in overall length with a hex size of 2.000 inches. The branch port drill is 0.281 inches, while the inline port drills measure 1.078 inches. The swivel female end allows for easier installation and alignment in tight or fixed-line configurations.

SKU: 6574-20-20-04

Supplier Part Number (MPN): 6574-20-20-04

Alternate Part Numbers: GP6504-20-20-04FP, GP6504202004FP

Specifications

Supplier Part Number 6574-20-20-04	Product Weight 0.00 lbs

Product Questions & Answers (1)

Question by: Denise M on Mar 9, 2026, 6:08 AM

So this thing's got a female swivel on one end, that right? Makes it easier to line things up, I reckon?

Answer by: Customer Support on Mar 11, 2026, 6:51 AM

That's correct. The swivel female JIC end is designed to simplify installation, especially when you're working with fixed lines or in tight spots. It allows for some wiggle room during connection.
