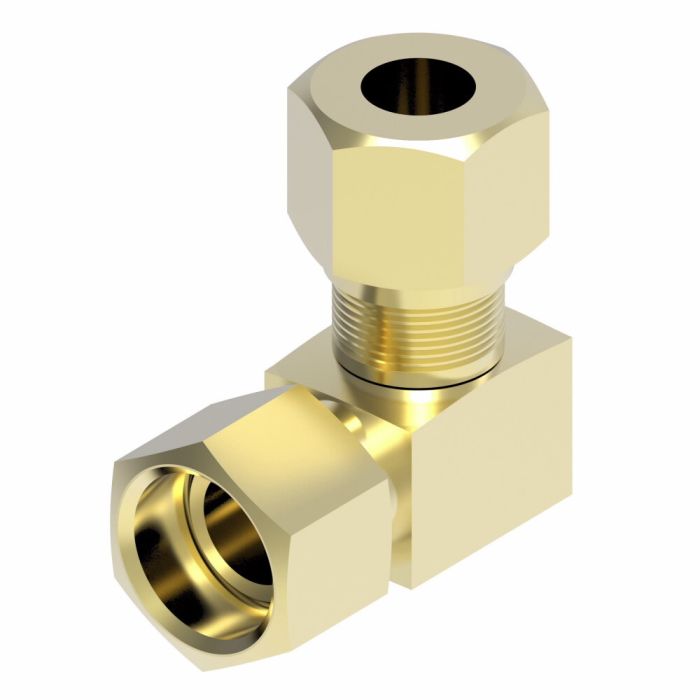

A 90° elbow adapter configured with a SAE 45° male end and a line/hose/tube female end, the Danfoss / Eaton Brass Adapter is suited for instrumentation, hydraulic, and pneumatic system connections where a direction change is required. The 1/2 in. male end pairs with a 5/16 in. female end, with a hex size of 0.56 in. and a drop dimension of 0.70 in.
Manufactured from brass and finished with Dura-Kote plating, this adapter offers solid corrosion resistance in demanding service environments. It is rated for operating pressures above SAE standards and carries a minimum working temperature of -65°F. Part of the Aeroquip line, it represents one of hundreds of available styles, providing flexibility when configuring multi-directional fluid connections in tight or angled installations.
SKU: 65X5
Supplier Part Number (MPN): 65X5
|
Alternate Part Numbers
MINO-00015X07424
|
Application
Instrumentation, hydraulic
and pneumatic systems. |
Drop Dimension
0.70
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Size 1
0.50
|
End Size 2
0.31
|
End Type 1
SAE 45
|
End Type 2
Line/Hose/Tube
|
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
|
Hex Size 2
0.56
|
ICC
Elbow Adapters
|
Item Type
SAE 45° Male/Line/Hose/Tube Female 90° Elbow Adapter
|
Language
English
|
Minimum Working Temperature
-65
|
Net Pack Quantity Units
EA
|
NMFC
60
|
Product Material
Brass
|
Product Width
0.56
|
Sub Brand
None
|
Supplier Part Number
65X5
|
Product Weight
0.09 lbs
|
