20MJ-20MJ-20FJS TEE FORG

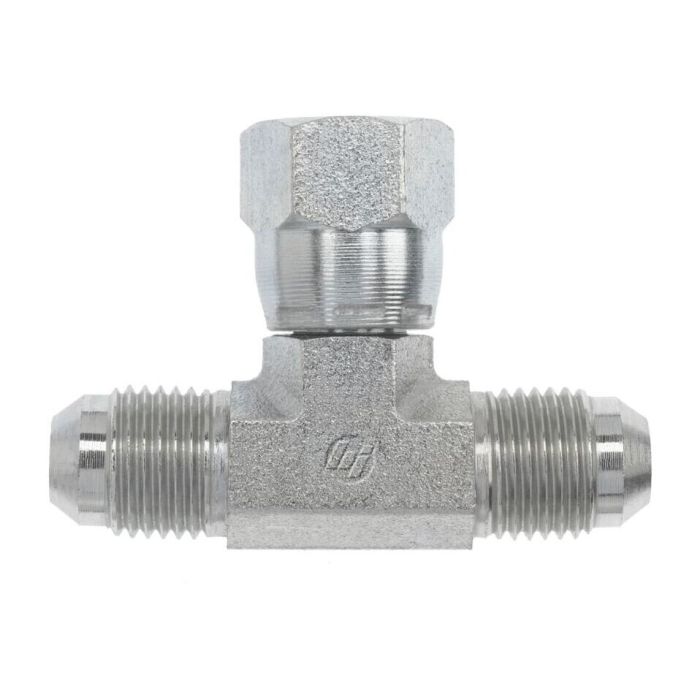

Forged from steel, this equal-bore tee fitting provides three-port flow distribution in a single compact body. The 20MJ-20MJ-20FJS Tee Forged features two Male JIC SAE 37-degree flare ports and one Female JIC Swivel 37-degree flare port, all sized at 1-5/8-12 thread and conforming to SAE J514. The swivel end on the branch port simplifies installation by allowing the fitting to be positioned without rotating the connected hose or tube assembly.

Part of the Brennan Industries 6600-FG Series, the forged steel construction offers structural integrity suited to high-demand hydraulic circuit applications. With a hex size of 2.000 in. and an overall length of 2.310 in., the fitting is designed for use in tight assemblies where dimensional consistency matters. All three ports share a 1.078 in. drill diameter, ensuring uniform flow passage throughout. California residents should note that this product carries a Proposition 65 warning.

SKU: 6600-20-20-20-FG

Supplier Part Number (MPN): 6600-20-20-20-FG

Alternate Part Numbers: 6600-20-20-20, A203101-20-20S
