04MJ-04FJS-04MJ SWIVEL RUN TEE STNLS

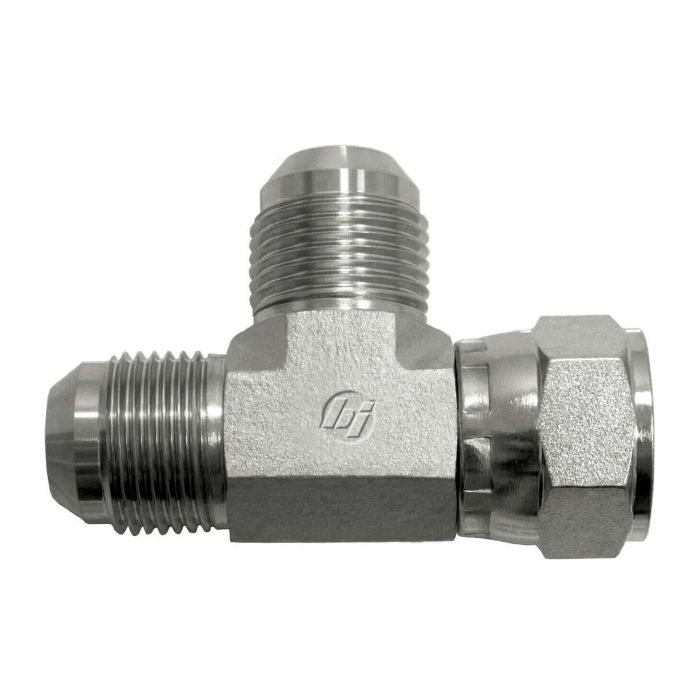

Constructed from stainless steel, the 04MJ-04FJS-04MJ Swivel Run Tee is a three-port JIC fitting designed for inline tee configurations where one branch connection requires rotational flexibility. The swivel port uses a 7/16-20 Female JIC swivel with a 37-degree flare seat, conforming to SAE J514, while both run ports are 7/16-20 Male JIC with matching 37-degree flare geometry, all three ports sharing the same thread size for consistent compatibility throughout the assembly.

The stainless steel construction makes this fitting well-suited for hydraulic lines exposed to corrosive environments or fluid media incompatible with carbon steel. The swivel branch allows for easier assembly and routing adjustments without twisting adjacent lines. Overall centerline length is 0.890 inches, with branch and run centerline dimensions of 1.000 and 0.650 inches respectively. Manufactured under Brennan Industries' 6602-FG series, this fitting carries a California Proposition 65 warning.

SKU: 6602-04-04-04-SS

Supplier Part Number (MPN): 6602-04-04-04-SS

Alternate Part Numbers: AJ4SRT
