10MJ-10FJS-10MJ TEE

Description & Features

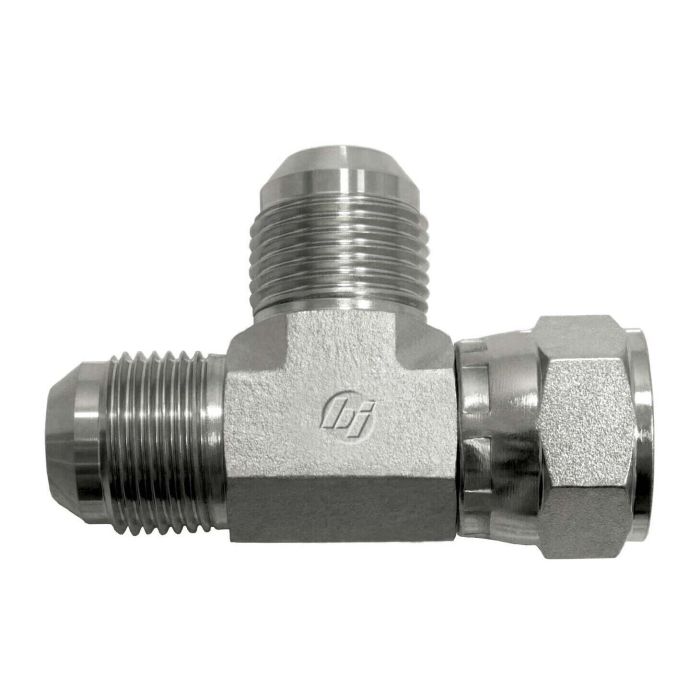

The 10MJ-10FJS-10MJ TEE manufactured by Brennan Industries Inc is a meticulously crafted swivel run tee forged from high-quality steel forging.

Designed to comply with SAE J514 specifications it features a male JIC SAE 37-degree flare at both Thread 3 and Thread B1 and a female JIC swivel 37-degree flare at Thread B2.

With dimensions measuring 1.000 mm (C Hex 1) 1.450 mm (Overall Length L) and centerline lengths of 1.450 mm 1.620 mm and 1.120 mm respectively this fitting ensures a precise durable connection.

Its threads come in uniform sizes of 7/8-14 with a drill size of 0.484 mm ensuring compatibility and reliability in professional environments.

MPN: 6602-10-10-10-FG

Supplier Part Number: 6602-10-10-10-FG

Specifications

Connection Size 1 5/8 in	Connection Size 2 5/8 in	Connection Size 3 5/8 in	Connection Type Female JIC Swivel, Male JIC	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Female SAE 37 deg JIC Flare Swivel	Connection Type 3 Male SAE 37 deg JIC Flare	Dimension Standards MS 51523, SAE J514	Dimensions 3.07 in L	Finish Trivalent Zinc-Plated	Fitting Type Tee	Hex Size 7/8 x 1 in	l Dimensions 1.45 in	Material Steel	Material Construction AISI 1045 Steel	Maximum Operating Pressure 5000 psi	Series 6602-FG Series	Thread 2 Drill Dimensions 0.484 in	Thread 3 Drill Dimensions 0.484 in	Thread B1 Drill Dimensions 0.484 in	Thread Size 7/8-14

Product Questions & Answers (1)

Question by: Sheila S on Jun 20, 2025, 4:48 PM

got a hose end thats 7/8-14 JIC, will this tee match up on all three ports?

Answer by: Customer Support on Jun 22, 2025, 8:02 AM

All three connections on this tee are 7/8-14 and built to SAE J514 JIC 37 degree flare. Two ends are male JIC flare (Thread 3 and Thread B1) and the branch is a female JIC swivel 37 degree flare (Thread B2).
