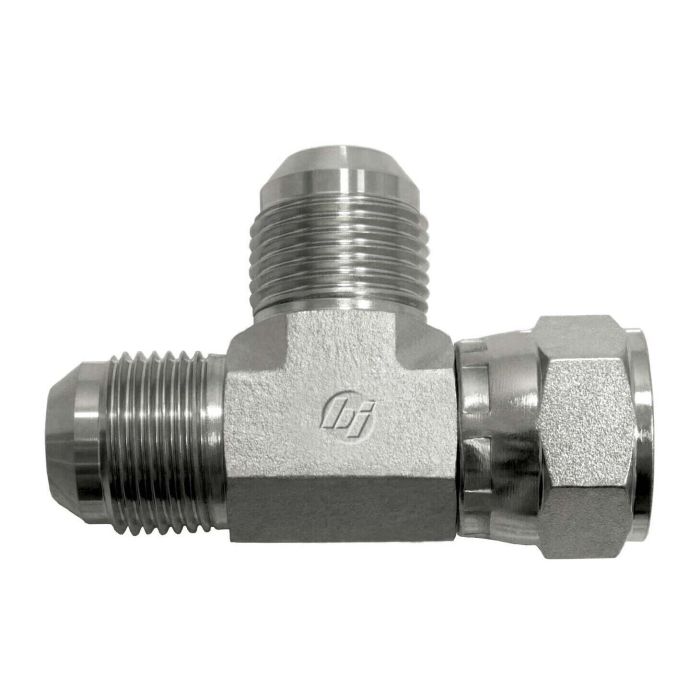

BRENNAN 16MJ-20FJS-20MJ

A forged steel swivel run tee, the Brennan 16MJ-20FJS-20MJ is built to SAE J514 standards and designed for hydraulic line assemblies requiring a directional branch off the main flow path. The forged steel construction of the Brennan Series 6602-FG provides solid, reliable performance in demanding hydraulic environments.

Two male JIC SAE 37-degree flare connections, one at 1-5/8-12 and one at 1-5/16-12, run along the main axis, while a 1-5/8-12 female JIC swivel at 37-degree flare serves the branch port. The swivel branch allows rotational adjustment during installation, reducing stress on connected lines. All three ports conform to SAE J514, ensuring broad compatibility with standard JIC hydraulic fittings.

California residents should note this product carries a Prop 65 warning.

SKU: 6602-16-20-20-FG

Supplier Part Number (MPN): 6602-16-20-20-FG
