BRENNAN SS ADAPTER

Description & Features

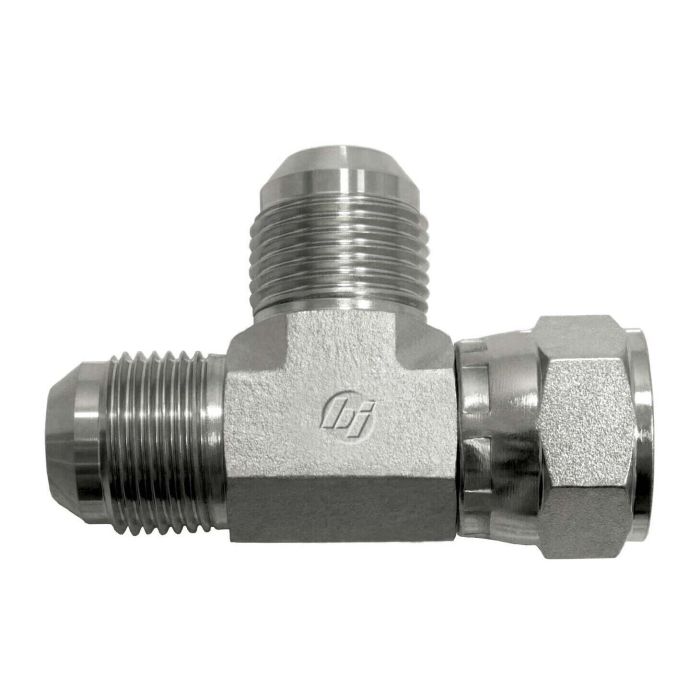

Constructed from high-grade straight stainless steel, this Brennan SS Adapter is engineered for durability and reliability in demanding industrial environments. The swivel run tee design features both male and female JIC SAE 37-degree flare connections, ensuring versatility and compatibility with a variety of hydraulic systems. The adapter accommodates thread sizes of 1-5/8-12, conforming to SAE J514 standards, which guarantees a secure and leak-resistant fit.

The Brennan SS Adapter belongs to the 6602-FG series, known for its precision and robust construction. With centerline lengths of 2.060 mm, 2.310 mm, and 1.685 mm, this adapter is designed to facilitate efficient fluid transfer in complex hydraulic assemblies. Its PROP-65 compliance is a testament to its safety and quality, making it suitable for use in California and other regulated environments.

SKU: 6602-20-20-20-SS

Supplier Part Number (MPN): 6602-20-20-20-SS

Specifications

Brand BRENNAN	Connection Size 1 1-1/4 in	Connection Size 2 1-1/4 in	Connection Type Female JIC Swivel, Male JIC	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Female SAE 37 deg JIC Flare Swivel	Connection Type 3 Male SAE 37 deg JIC Flare	Dimension Standards MS 51523, SAE J514	Dimensions 4.37 in L	Fitting Type Tee	Material Stainless Steel	Material Construction 316/316L Stainless Steel	Maximum Operating Pressure 3000 psi	Series 6602-FG Series	Thread 2 Drill Dimensions 1.078 in	Thread 3 Drill Dimensions 1.078 in	Thread B1 Drill Dimensions 1.078 in	Thread B2 Drill Dimensions 1.078 in	Thread Size 1-5/8-12

Similar Products

Model Number	Connection Size 1	Connection Size 2	Connection Size 3	Thread Size	Hex Size
6602-04-04-04-SS	1/4 in	1/4 in		7/16-20	0.563 x 0.438 in
6602-06-06-06-SS	3/8 in	3/8 in	3/8 in	9/16-18	0.563 x 0.688 in
6602-08-08-08-SS	1/2 in	1/2 in	1/2 in	3/4-16	7/8 x 3/4 in
6602-10-10-10-SS	5/8 in	5/8 in	5/8 in	7/8-14	7/8 x 1 in
6602-12-12-12-SS	3/4 in	3/4 in	3/4 in	1-1/16-12	1.06 in, 1.25 in
6602-16-16-16-SS	1 in	1 in		1-5/16-12
